Product Description

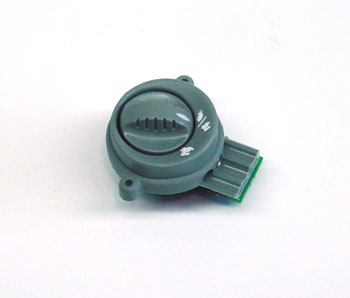

The CR 812877 Fast/Slow Switch is a two-position instrument panel control for Crown WP 2300 series electric pallet trucks. Rated for 24VDC operation at 2A continuous, this switch toggles between fast and slow lift or travel speeds to optimize productivity and safety. Features silver alloy contacts, sealed impact-resistant housing, and corrosion-resistant construction for reliable performance in freezer and wet environments. Direct replacement for Crown WP 2300 applications.
Specifications
Electrical Specifications
| Installation Location | Mounted on instrument panel of WP 2300 series electric pallet trucks |
| Terminal Type | Screw terminal connection, 2-position |
| Rated Voltage | 24VDC nominal (matches vehicle system voltage) |
| Rated Current | 2.0A continuous |
Part Numbers & Compatibility
| OEM Part Number | CR 812877 |
| Compatible Equipment Models | Crown WP 2300 Series |
Frequently Asked Questions
Q: What does the CR 812877 fast/slow switch do on Crown WP 2300 trucks?
A: The CR 812877 is a two-position switch mounted on the instrument panel of Crown WP 2300 series electric pallet trucks. It toggles between fast and slow lift or travel speeds, rated for 24VDC, 2A continuous.
Q: Is the CR 812877 compatible with other Crown pallet jack models?
A: The CR 812877 is designed specifically for Crown WP 2300 series electric pallet trucks. It may not fit other Crown models or brands. Verify your model matches WP 2300 or WP2300 before ordering.
Q: What are the electrical specifications of the CR 812877?
A: The CR 812877 is rated for 24VDC nominal system voltage and 2A continuous current. It features silver alloy contacts for reliable switching and screw-terminal connections for panel mounting.
Q: What makes the CR 812877 suitable for freezer environments?
A: The CR 812877 has a sealed, impact-resistant plastic housing and corrosion-resistant contacts designed for cold storage and freezer operation. Silver alloy contacts resist moisture and contamination.
Q: What symptoms indicate the CR 812877 switch needs replacement?
A: Replace the switch if the truck does not respond to fast/slow selection, if there is intermittent speed response, or if contact pitting or corrosion is visible. Test electrical continuity before confirming failure.
