Product Description

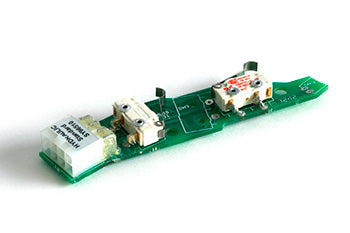

Hydraulic PC board for Crown WP 2300 series electric pallet trucks, OEM part number CR 812942-001, controls hydraulic raise and lower functions via solid-state PCB assembly; designed for direct integration with low voltage DC control circuits; suitable for installation in control enclosure per Crown specifications; no cross-reference part numbers available.
Compatibility: Fits pallet jacks made by Crown, model WP 2300. Alternate model: WP2300. SKU: CR 812942-001
Specifications
Dimensional
| Reference Drawing | Refer to Crown WP 2300 parts schematic for board layout and mounting hole pattern |
Electrical
| Control Circuit | Low voltage DC control circuit for hydraulic actuator |
Material
| Component Lead Finish | Tin-lead or RoHS-compliant lead-free solder (based on manufacturing date) |
Part Numbers
| OEM Part Number | CR 812942-001 |
| Manufacturer Part Number | CR 812942-001 |
| Compatible Models | Crown WP 2300 series electric pallet trucks |
Frequently Asked Questions
Q: What does the CR 812942-001 hydraulic PC board do on Crown WP 2300 electric pallet trucks?
A: CR 812942-001 is a solid-state PCB assembly that controls hydraulic raise and lower functions on Crown WP 2300 Series electric pallet trucks. It integrates with the low-voltage DC control circuit to manage hydraulic actuator operation via electronic switching.
Q: What electrical specifications does CR 812942-001 require?
A: CR 812942-001 is designed for low-voltage DC control circuits compatible with Crown WP 2300 Series electrical systems. The board uses solid-state switching for hydraulic actuator control and must be installed in the control enclosure per Crown specifications for proper voltage regulation and circuit protection.
Q: What solder finish options are available on CR 812942-001?
A: CR 812942-001 component leads are available with either traditional tin-lead solder or RoHS-compliant lead-free solder, depending on manufacturing batch and regulatory requirements. Verify the solder finish of your replacement board matches the assembly specifications for your truck model.
Q: Is CR 812942-001 compatible with Crown WP 3000 Series equipment or only WP 2300?
A: CR 812942-001 is validated exclusively for Crown WP 2300 Series electric pallet trucks. It is not cross-compatible with WP 3000 or other model lines. Using this board on incompatible equipment may cause electrical failure or loss of hydraulic control function.
Q: Are there any cross-reference part numbers or equivalent boards from other manufacturers for CR 812942-001?
A: No cross-reference part numbers or equivalent hydraulic control boards from other manufacturers have been identified. CR 812942-001 is a Crown proprietary assembly with no documented compatible alternatives from other pallet jack OEMs.
Q: What is the typical lifespan or maintenance interval for CR 812942-001?
A: CR 812942-001 is a solid-state electronic board with no moving parts. Under normal operating conditions with proper electrical protection and heat management in the control enclosure, the board should provide years of service. Monitor for corrosion, burnt components, or intermittent hydraulic response as indicators of PCB degradation or failure.
