Product Description

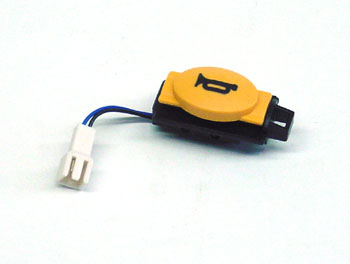

Crown horn switch (HNS1), part number CR 811932-001, is a left-hand momentary switch assembly for Crown WP 2300 Series electric pallet trucks. Features include silver alloy contacts rated for 24VDC nominal control voltage in SPST (Single-Pole Single-Throw) configuration, glass-reinforced nylon housing with spring-return actuator, and 100,000-cycle mechanical life rating. Designed for reliable operator horn control in material-handling environments.
Compatible with Crown WP 2300 Series electric pallet trucks. Cross-reference designations: CR811932-001, CR811932001, 811932001.
Specifications
Electrical Specifications
| Control Voltage | 24VDC nominal |
| Rated Current | 0.5A resistive load |
| Connector Type | Crimp terminal, 2-position |
Material & Construction
| Housing Material | Glass-reinforced nylon |
| Contact Material | Silver alloy |
Part Numbers & Compatibility
| Part Number | CR 811932-001 |
| Cross-Reference Part Numbers | CR811932-001, CR811932001, 811932001 |
| Compatible Equipment Model | Crown WP 2300 Series electric pallet truck |
Performance Specifications
| Switch Type | Left-hand momentary switch assembly |
| Configuration | SPST (Single-Pole Single-Throw) |
| Actuator Type | Spring-return |
| Mechanical Life | 100,000 cycles minimum |
| Electrical Contact Reliability | 98% rating |
Frequently Asked Questions
Q: What Crown models use the CR 811932-001 horn switch?
A: The CR 811932-001 (HNS1) is a left-hand momentary switch assembly compatible with Crown WP 2300 Series electric pallet trucks. It provides operator control for the horn circuit in these models.
Q: What is the voltage and current rating for the CR 811932-001?
A: The CR 811932-001 operates at 24VDC nominal control voltage and is rated for 0.5A resistive load. Verify your truck uses 24VDC before ordering to ensure compatibility.
Q: How many mechanical cycles is the CR 811932-001 rated for?
A: The CR 811932-001 features a spring-return actuator with 100,000 cycles mechanical life. This rating reflects durability for typical operator horn use over the truck operational lifespan.
Q: What materials are used in the CR 811932-001 construction?
A: The CR 811932-001 features silver alloy contacts, glass-reinforced nylon housing, and a spring-return actuator. These materials provide reliable electrical contact and durability in industrial material-handling environments.
Q: What are the cross-reference part numbers for CR 811932-001?
A: The CR 811932-001 is cross-referenced as CR811932-001, CR811932001, 811932001, and 2300. All designations refer to the same OEM left-hand horn switch for Crown WP 2300 Series trucks.
Q: What is the switch configuration of the CR 811932-001?
A: The CR 811932-001 is an SPST (Single-Pole Single-Throw) momentary switch with a crimp terminal 2-position connector. The momentary action means horn sound only occurs while the switch is actively pressed.
