Crown Horn Switch Assembly for WP 2300, WP 3000, WP 3030, WP 3035, WP 3040, WP 3045
CR 811932-002
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

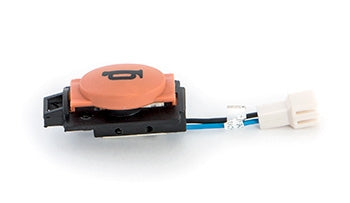

Crown CR 811932-002 Horn Switch Assembly (HNS2), right hand placement, OEM component for WP 2300 electric lift truck models. Electrical momentary switch, rated 24VDC, 5A SPST, with high-impact thermoplastic body and silver-plated contacts.
Compatibility: Fits pallet jacks made by Crown, model WP 2300. Alternate model: WP2300. SKU: CR 811932-002
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Model | WP 2300, WP 3000, WP 3030, WP 3035, WP 3040, WP 3045 |
| Factory Part Number | CR 811932-002 |
| Manufacturer Part Number | 811932-002 |
| Compatible Equipment Model | Crown WP 2300 series |
Electrical Specifications
| Rated Voltage | 24VDC nominal |
| Maximum Current | 5 amps continuous |
Performance Specifications
| Duty Cycle | Continuous at rated voltage and current |
Additional Specifications
| Switch Type | Momentary SPST (Single Pole, Single Throw) |
| Switch Housing Material | High-impact thermoplastic, UL94 V-0 |
| Contact Material | Silver-plated |
| Placement | Right-hand position |
Frequently Asked Questions
Q: What equipment does the CR 811932-002 horn switch assembly fit?
A: The CR 811932-002 is designed for Crown WP 2300, WP 3000, WP 3030, WP 3035, WP 3040, and WP 3045 electric lift trucks. It serves as a replacement part for these models.
Q: What materials are used in the CR 811932-002 construction?
A: The horn switch assembly features a high-impact thermoplastic body rated ul94 v-0 for safety and durability. Contact surfaces are silver-plated to provide reliable electrical conductivity and minimize corrosion in industrial environments.
Q: How long can the CR 811932-002 be used continuously?
A: The CR 811932-002 is engineered for continuous duty cycles. The thermoplastic housing and silver-plated contacts are designed to withstand repeated activation in industrial fleet applications without performance degradation.
Q: What should I consider when replacing the horn switch on my Crown lift truck?
A: When replacing the horn switch, ensure it is compatible with your specific Crown model. Verify that the part number matches and that the switch fits the mounting location on your equipment.
