Product Description

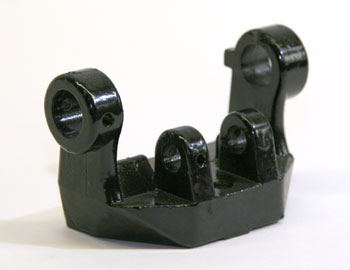

Valu-Jack DF20-08 handle bracket assembly designed for manual pallet jack handle mounting. Compatible with Valu-Jack manual pallet truck series, constructed from ASTM A36 structural steel with powder coated finish. Supplied OEM part DF20-08. Mounts with three 5/16 inch bolts, shaft bore 0.625 inch, bolt circle diameter 2.50 inches, accommodates standard control chain pass-through. No cross-reference or superseded part numbers recorded.
Specifications
Material & Construction
| Bracket Material | Structural steel, ASTM A36 |
| Hardness | Brinell 130 minimum |
| Finish/Coating | Powder coated industrial finish |
Part Numbers & Compatibility
| OEM Part Number | DF20-08 |
Performance Specifications
| Service Factor | 1.0 continuous |
Frequently Asked Questions
Q: What is the DF20-08 and what does it mount on?
A: The DF20-08 is a handle bracket assembly designed for manual pallet jack handle mounting on Valu-Jack manual pallet truck series. It provides the mounting interface between the handle and the truck frame.
Q: What material is the DF20-08 bracket made from?
A: The DF20-08 handle bracket is constructed from ASTM A36 structural steel with a powder coated industrial finish. The steel has a minimum Brinell hardness of 130, providing durability for repeated handling and load cycling.
Q: What are the mounting specifications for the DF20-08?
A: The DF20-08 mounts with three 5/16 inch bolts. The shaft bore is 0.625 inches, and the bolt circle diameter is 2.50 inches. It accommodates standard control chain pass-through for pump operation.
Q: What is the service factor for the DF20-08 bracket?
A: The DF20-08 has a service factor of 1.0 continuous, meaning it is rated for continuous duty in manual pallet jack applications without load limitations based on the bracket assembly itself.
Q: Are there superseding or cross-reference part numbers for the DF20-08?
A: No cross-reference or superseded part numbers have been recorded for the DF20-08. Use this exact OEM part number when ordering replacement bracket assemblies.
