Product Description

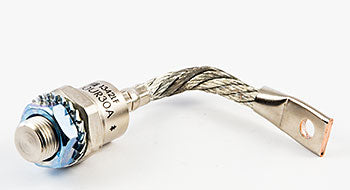

Raymond RA 1-135-103 is an OEM semiconductor diode component for electric lift truck and electric pallet jack electrical systems. Provides reliable rectification and DC circuit protection in manual and powered Raymond lift equipment.
Specifications
Electrical
| Intended Use | DC circuit protection, polarity control, and voltage rectification |
Material & Construction
| Semiconductor Material | Silicon |
Part Numbers
| OEM Part Number | RA 1-135-103 |
| Alternate Part Number | 1-135-103 |
| Cross-Reference Part Numbers | RA1-135-103, 1-135-103 |
| Equivalent Part Numbers | Total Source 1-135-103 |
Frequently Asked Questions
Q: What is the RA 1-135-103 diode used for in electric lift equipment?
A: The RA 1-135-103 is a silicon semiconductor diode used for DC circuit protection, polarity control, and voltage rectification in Raymond electric pallet jacks and lift truck electrical systems. It prevents reverse current flow and protects sensitive control circuits from damage.
Q: What are the cross-reference and alternate part numbers for RA 1-135-103?
A: The RA 1-135-103 has the following cross-references: 1-135-103, RA1-135-103, and equivalent Total Source part number 1-135-103. All designations refer to the identical OEM silicon diode component. Use any of these part numbers interchangeably when ordering replacements.
Q: What material is the RA 1-135-103 made from?
A: The RA 1-135-103 is a silicon-based semiconductor diode. Silicon construction provides reliable rectification, temperature stability, and fast switching characteristics required for industrial lift truck control circuits. This material choice ensures long service life under continuous-duty conditions.
Q: Which Raymond equipment models are compatible with RA 1-135-103?
A: The RA 1-135-103 diode is used in Raymond electric pallet jacks and electric lift truck electrical systems that require DC circuit protection and voltage rectification. Verify your equipment model number and control circuit design against Raymond service documentation to confirm this diode is the correct replacement.
Q: What happens if the RA 1-135-103 diode fails?
A: A failed RA 1-135-103 diode can allow reverse current flow, damage control board components, cause charging system failures, or prevent the truck from operating. If troubleshooting indicates a diode failure, replace it immediately with the OEM RA 1-135-103 to restore proper circuit protection.
Q: Is RA 1-135-103 an OEM component?
A: Yes. The RA 1-135-103 is an original Raymond OEM semiconductor diode component. It provides reliable rectification and DC circuit protection in manual and powered Raymond lift equipment, maintaining compatibility with original Raymond electrical systems.
