Product Description

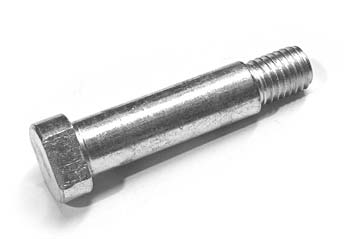

Articulated Pin
Frequently Asked Questions
Q: What is the function of the EA E166 articulated pin?
A: The EA E166 articulated pin is a pivot joint that connects movable components in the Eagleman pallet jack lift mechanism. It allows the scissors or fork assembly to articulate smoothly during lift and lower cycles. Proper pin function is essential for smooth operation and even load distribution across the forks.
Q: What material is the EA E166 articulated pin made from?
A: The EA E166 articulated pin is manufactured from hardened steel or alloy steel with a smooth, highly polished surface to minimize wear during articulation. The pin typically has a zinc-plated, chrome-plated, or powder-coat finish to resist corrosion and hydraulic fluid degradation in warehouse environments.
Q: What dimensions should I verify for the EA E166?
A: The EA E166 articulated pin has a specific outer diameter, inner bore diameter (if applicable), and length. These dimensions are critical for proper fit and articulation. Measure the existing pin or check your Eagleman equipment manual to confirm specifications before ordering. An oversized or undersized pin will bind or create excessive play.
Q: How can I tell if the EA E166 articulated pin needs replacement?
A: Signs of pin wear include binding or grinding during lift and lower, visible play or rocking in the joint, side-to-side wobble in the scissors assembly, or tilted forks during lifting. Corrosion, visible scoring, or bent geometry also require replacement. A worn pin leads to uneven load bearing and increased wear on related components.
Q: What is the load rating for the EA E166 articulated pin?
A: The EA E166 is rated for the full load capacity of the Eagleman pallet jack model it equips. Verify your equipment load rating in the manufacturer documentation. The pin material and diameter are engineered to safely support this load under normal lifting operations. Exceeding the rated load may cause pin deformation or fracture.
