Product Description

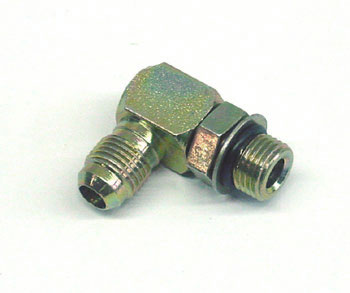

Hyster HY 601767 OEM hydraulic elbow fitting—90 degree, heavy-duty steel, designed for Hyster electric lift trucks. Validated for use as an inline hydraulic system connector. Supplied under Hyster OEM part number 601767. No known cross-references or equivalents currently available.
Specifications
Dimensional Specifications
| Orientation | Inline, 90° offset |
Hydraulic
| Connection Type | Hydraulic threaded connectors |
Material & Construction
| Body Material | Heavy-duty hydraulic-grade steel |
Part Numbers
| OEM Part Number | 601767 |
| Manufacturer Part Number | HY 601767 |
Frequently Asked Questions
Q: What is the HY 601767 hydraulic elbow fitting designed for?
A: The HY 601767 is an OEM 90-degree hydraulic elbow fitting manufactured for Hyster electric lift trucks. It serves as an inline hydraulic system connector with a 90-degree offset orientation, routing pressurized fluid between hydraulic components such as pump discharge lines, cylinder ports, and control circuits.
Q: What are the material and construction specifications of the HY 601767?
A: The HY 601767 is constructed from heavy-duty hydraulic-grade steel engineered to withstand cyclic pressure loads and thermal expansion in electric lift truck hydraulic systems. The threaded connection design ensures leak-resistant performance when properly torqued to specification.
Q: What connection type does the HY 601767 use?
A: The HY 601767 features hydraulic threaded connectors at both ports. The threaded design allows for secure connection to hoses, cylinders, pumps, and other hydraulic components. Specific thread size and pitch must be matched to your system. Contact us with your Hyster truck model for exact thread specifications.
Q: Which Hyster electric lift truck models are compatible with the HY 601767?
A: The HY 601767 is validated for use in multiple Hyster electric lift truck models as an inline hydraulic system connector. Compatibility depends on your specific truck model, serial range, and the location within the hydraulic circuit where the elbow will be installed. Provide your equipment details for confirmation.
Q: How can I identify if the HY 601767 elbow needs replacement?
A: Replace the HY 601767 if you observe hydraulic fluid weeping or spraying from the threaded connections, if lift or tilt function becomes sluggish or fails, or if visible damage such as cracks or corrosion is present on the steel body. Continued operation with a failed elbow will cause fluid loss and system pressure drop.
Q: Are there cross-references or equivalent parts to the HY 601767?
A: No known cross-references or equivalent parts are currently available for the HY 601767. This is the original Hyster OEM elbow fitting. Order using SKU HY 601767 to ensure you receive the correct part for your Hyster electric lift truck hydraulic system.
