Product Description

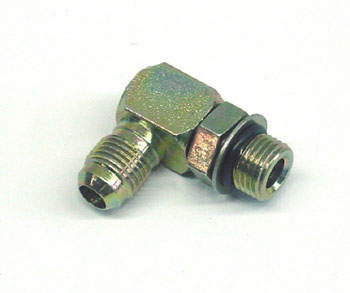

ME 601676 (Elbow 90 Degrees) is a hydraulic SAE x JIC 90-degree elbow fitting for electric lift truck hydraulic systems, cross-referenced as HY 601676 and HN601676, carbon steel construction, compatible with Hyster, Hyundai, and Mitsubishi equipment.
Specifications
Hydraulic
| Seal Type | Metal-to-metal, 37° flare |
Material & Construction
| Material Specification | Carbon steel, hydraulic grade |
Mechanical Specifications
| Fitting Orientation | 90 degree elbow |
| Port 1 Connection Type | SAE straight thread (ORFS or O-ring boss, precise thread specification not confirmed) |
| Port 2 Connection Type | JIC 37° flare (precise thread/form not confirmed) |
Part Numbers & Compatibility
| OEM Part Number | ME 601676 |
| Manufacturer Part Number | HY 601676 |
| Cross-Reference Part Numbers | HN601676 (Hyundai), 601676, Mitsubishi OE: 601676, Hyster OE: 601676 |
| Replaces/Supersedes | HN601676, HY601676, 601676 |
| Equivalent Part Numbers | ME 601676, HY 601676, HN601676 |
Frequently Asked Questions
Q: What is the ME 601676 elbow fitting used for?
A: The ME 601676 is a 90-degree hydraulic elbow fitting with SAE and JIC threads. It is used in electric lift truck hydraulic systems to change flow direction and connect hoses or tubes at right angles.
Q: What are the cross-reference part numbers for ME 601676?
A: ME 601676 is cross-referenced as HY 601676, HN601676 (Hyundai equivalent), and 601676 across multiple lift truck brands. Equivalent part numbers include HY 601676 and HN601676. All reference the same SAE x JIC 90-degree elbow.
Q: Which lift truck brands use the ME 601676 elbow?
A: The ME 601676 is compatible with Hyster, Hyundai, and Mitsubishi electric lift trucks. The part has OEM applications across these manufacturers and is validated for their hydraulic system specifications.
Q: What material and thread standards does the ME 601676 meet?
A: The ME 601676 is constructed from carbon steel and complies with SAE and JIC thread standards. This construction provides durability in high-pressure hydraulic applications while ensuring compatibility with standard hose fittings and manifold ports.
Q: How do I verify the correct thread size for my hydraulic circuit?
A: Confirm the SAE and JIC thread sizes match your existing hose fittings and manifold ports. Compare the ME 601676 port dimensions against your equipment documentation or existing elbow fitting to ensure correct bore and thread pitch.
