Product Description

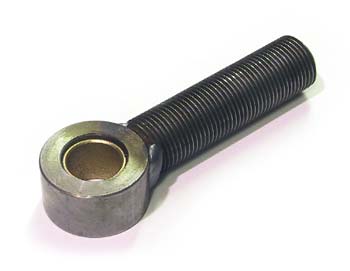

Lift-Rite Eye Bolt LF PN-20226 is a critical linkage component for manual pallet jacks, enabling precise adjustment of fork tip height on standard LCR55 and TitanSeries models.
Compatibility: Fits pallet jacks made by Lift-Rite, model LCR55. SKU: LF PN-20226
Specifications
Installation
| Orientation | Install on chassis linkage, secure with split pin (PN-20269) |
Part Numbers
| OEM Part Number | LF PN-20226 |
Frequently Asked Questions
Q: What is the LF PN-20226 eye bolt and what does it do?
A: The LF PN-20226 is an OEM eye bolt that serves as a critical linkage component in manual pallet jack assemblies. It is installed on the chassis linkage and enables precise adjustment of fork tip height during pump operation. It works in conjunction with the PN-20226A bushing and is secured with the PN-20269 split pin.
Q: Which Lift-Rite pallet jack models are compatible with the LF PN-20226?
A: The LF PN-20226 eye bolt is compatible with Lift-Rite LCR55 and TitanSeries models. These are standard manual hand pallet trucks. Confirm your equipment model and serial range before ordering to ensure fitment.
Q: What related components work with the LF PN-20226?
A: The LF PN-20226 eye bolt works as part of an assembly with the PN-20226A bushing and PN-20227 eye bolt pin. It is secured to the chassis linkage with the PN-20269 split pin. These components function together to control fork height adjustment.
Q: Why would the LF PN-20226 eye bolt need replacement?
A: Replace the eye bolt if fork height adjustment becomes sluggish, inconsistent, or fails completely. Physical damage such as cracks, bent threading, or damage to the eye opening also indicates replacement is needed. Wear of this component can prevent proper height control during pump operation.
