Product Description

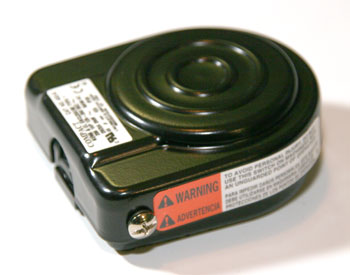

Yale YL 22125100 foot switch for electric lift truck applications. Supersedes part numbers 722125100 and 580001460. Electrical rating: 24VDC, 5A, single pole NO contact, operator safety deadman function. Housed in molded thermoplastic with panel-mount threaded bushing. Designed for continuous-duty cycle and 100,000 cycle service life.
Specifications
Electrical
| Voltage Rating | 24VDC nominal |
| Current Rating | 5A at 24VDC |
| Control Voltage | 24VDC |
Material
| Housing Material | Molded industrial-grade thermoplastic |
| Actuator Material | Non-slip injection-molded polymer |
Part Numbers
| OEM Part Number | YL 22125100 |
| Manufacturer Part Number | YL 22125100 |
| Cross-Reference Part Numbers | 722125100, 580001460 |
| Supersedes/Replaces Part Numbers | 722125100, 580001460 |
| Equivalent/Interchange Part Numbers | 722125100, 580001460 |
Performance
| Service Life | 100,000 cycles at rated voltage and current |
Frequently Asked Questions
Q: What are the electrical specifications of the YL 22125100 foot switch?
A: The YL 22125100 is rated for 24VDC nominal voltage, 5A current rating at 24VDC, with a single pole NO (normally open) contact configuration and deadman operator safety function.
Q: Which Yale lift truck models use the YL 22125100 foot switch?
A: The YL 22125100 is designed for Yale electric lift truck applications. Confirm your equipment model and voltage system match before ordering.
Q: What does the deadman function do on the YL 22125100?
A: The deadman function is an operator safety feature that requires continuous foot pressure to maintain switch operation. When pressure is released, the circuit is interrupted immediately.
Q: What are the cross-reference part numbers for the YL 22125100?
A: The YL 22125100 supersedes and is cross-referenced to 722125100 and 580001460. These numbers are equivalent for Yale lift truck foot switch applications.
Q: What is the service life of the YL 22125100 foot switch?
A: The YL 22125100 is designed for continuous-duty cycle service and rated for 100,000 operating cycles. Actual lifespan depends on operating conditions and frequency of use.
Q: What material is the YL 22125100 housed in?
A: The YL 22125100 is housed in molded thermoplastic with a panel-mount threaded bushing for durability in material handling environments.
