Product Description

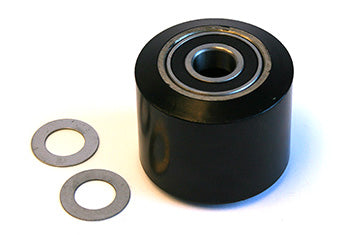

LM 025231 is an ultra-polyurethane load wheel assembly for manual pallet jacks, compatible with Toyota 5R, Toyota 4P, and American Lifts Little Mule HU25T pallet trucks. Wheel dimensions: 3.00 inches diameter, 2.50 inches width, with 20 mm precision-sealed ball bearing, steel core, and Shore D 70 hardness. Direct cross-references include LM 025231-KIT and equivalents for major pallet jack models rated to 5000 lbs.
Specifications
Compatibility
| Compatible Models | American Lifts Little Mule Hand Pallet Truck HU25T, Toyota 5R, Toyota 4P |
Material
| Polyurethane Hardness | Shore D 70 |
| Wheel Surface Finish | Machined polyurethane tread |
Part Numbers
| Cross-Reference Part Numbers | Replaces Little Mule HU25T load wheel, equivalent to Generic Parts Service LM 025231-KIT |
| Manufacturer Part Number | LM 025231 |
| Equivalent Part Numbers | LM 025231-KIT |
Frequently Asked Questions
Q: What are the wheel dimensions and specifications for the LM 025231?
A: The LM 025231 load wheel is 3.00 inches in diameter and 2.50 inches wide with a steel core and Shore D 70 hardness polyurethane tread. It features a 20 mm precision-sealed ball bearing for smooth operation under load.
Q: Which pallet jack models does the LM 025231 fit?
A: The LM 025231 is compatible with American Lifts Little Mule HU25T hand pallet trucks, Toyota 5R, and Toyota 4P models. Verify your equipment model and wheel mounting specifications to confirm fitment before ordering.
Q: What is the load rating for the LM 025231 wheel?
A: The LM 025231 is rated for pallet jacks with capacity up to 5000 lbs. Confirm your equipment load rating to ensure the wheel is suitable for your application.
Q: Are there cross-reference or equivalent part numbers for the LM 025231?
A: The LM 025231 direct cross-references include the LM 025231-KIT designation. It serves as an equivalent replacement for Little Mule HU25T load wheels. Check your equipment documentation for exact part matching.
Q: Why does the LM 025231 have Shore D 70 hardness polyurethane?
A: Shore D 70 hardness polyurethane provides a balance of load-carrying capacity and floor grip. This durometer is standard for load wheels on manual pallet jacks rated 5000 lbs and above, offering both durability and traction for controlled movement.
Q: Does the LM 025231 include a precision-sealed bearing?
A: Yes. The LM 025231 incorporates a 20 mm precision-sealed ball bearing that provides extended service life and reduced maintenance compared to unsealed bearings in warehouse environments.
