CR 076924-016

Frequently Asked Questions

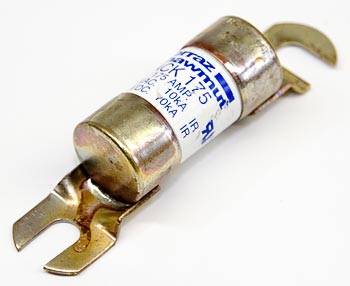

Q: What are the specifications for the CR 076924-016 fuse?
A: The CR 076924-016 is a 175A ALS style supplemental fuse rated 130V AC/DC. It is non-time-delay, one-time-use, and has a fiberglass body. Dimensions are 3.75 inches length by 1.63 inches width. This fuse is designed for Crown electric lift trucks.

Q: What does supplemental non-time-delay mean for the CR 076924-016?
A: Supplemental means this fuse provides secondary overcurrent protection alongside a primary fuse. Non-time-delay means it will blow immediately at rated current with no tolerance for inrush spikes. This fuse is one-time-use and cannot be reset or reused after blowing.

Q: Can the CR 076924-016 be used in both AC and DC circuits?
A: Yes. The CR 076924-016 is rated 130V AC/DC, which means it can operate in alternating current or direct current applications at 130 volts. However, verify your Crown lift truck circuit specification before installation, as most lift truck main circuits are 80VDC or 130VDC.

Q: Why is the CR 076924-016 body made of fiberglass?
A: Fiberglass construction in the CR 076924-016 provides electrical insulation and mechanical durability for industrial material handling environments. It resists moisture, vibration, and thermal stress better than traditional paper or ceramic materials used in older fuse designs.

Q: How do the dimensions of CR 076924-016 compare to other Crown fuses?
A: CR 076924-016 is 3.75 inches length by 1.63 inches width, making it significantly larger than cartridge fuses like CR 076924-011 (3.00 x 0.812 inches) or CR 076924-012 (2.5 x 0.56 inches). Always verify fuse holder dimensions before ordering to ensure fitment.
