Product Description

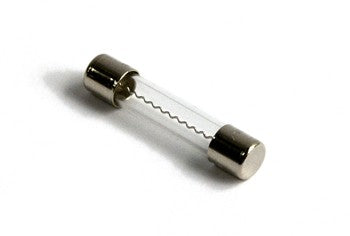

Daewoo OEM Fuse DW 8M8948 is a 15A, 32VDC fast-acting cartridge fuse, compatible with select electric lift trucks and cross-referenced as Caterpillar 8M-8948, featuring a glass body, nickel-plated brass contacts, length 31.8 mm, and axial mounting.
Specifications
Electrical Specifications
| Rated Current | 15A |
| Rated Voltage | 32VDC maximum |
| Interrupting Rating | 1000A at 32VDC |
| Contact Material | Nickel-plated brass |
Mechanical Specifications
| Body Material | Glass body with metal end caps |
Part Numbers
| OEM Part Number | DW 8M8948 |
| Manufacturer Part Number | 8M-8948 |
| Cross-Reference Part Numbers | 8M-8948 (Caterpillar), DW8M8948 (alternative formatting) |
Frequently Asked Questions
Q: What are the electrical specifications of the DW 8M8948 fuse?
A: The DW 8M8948 is a 15-ampere, 32-volt DC fast-acting cartridge fuse. It features an interrupting rating of 1000 amperes at 32 VDC. The glass body with nickel-plated brass contacts is rated for fast-response circuit protection in electric lift truck control systems. This fuse is cross-referenced as Caterpillar 8M-8948.
Q: What equipment models use the DW 8M8948 fuse?
A: The DW 8M8948 is compatible with select Daewoo, Caterpillar, and equivalent electric lift truck models that use 32 VDC control circuits. The cross-reference number is Caterpillar 8M-8948. Verify your equipment control voltage and fuse cavity dimensions before ordering.
Q: What is the physical size and mounting style of the DW 8M8948?
A: The DW 8M8948 has a length of 31.8 millimeters and uses axial mounting, meaning the leads are positioned along the length of the fuse body. This cartridge style fits standard fuse holders found in electric lift truck battery disconnect and control circuits.
Q: Why is the DW 8M8948 rated as fast-acting rather than slow-blow?
A: Fast-acting fuses protect sensitive electronic control circuits and solid-state components from damage during overcurrent events. Slow-blow fuses tolerate brief inrush current and are used in motor-starting circuits. Use only fast-acting fuses in control system applications.
Q: What should I do if the DW 8M8948 fuse keeps blowing?
A: Repeated fuse failure indicates an underlying circuit problem, not a fuse defect. Do not use a fuse with higher amperage rating. The 15-amp rating is designed for the specific load. A recurring blown fuse signals a short circuit or overload condition that requires system diagnostics. Contact us if you need troubleshooting guidance.
