Product Description

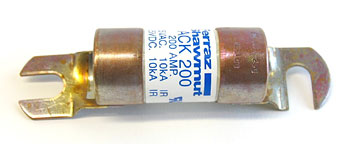

DX ACK-200 fuse engineered for electric lift truck DC circuit protection. Time-delay, dual-element stud-mounted design rated for 200A at 72VDC (max 125VAC/DC), compatible with major OEM forklift models. Constructed with copper terminals and bolt-in mounting for heavy-duty vibration resistance.
Specifications
Electrical Specifications
| Voltage Rating | 72 VDC nominal; up to 125 VAC/DC maximum system voltage |
| Current Rating | 200 Amperes continuous |
| Frequency | 50/60 Hz AC rated |
Material & Construction
| Construction Type | Rugged stud-mounted bolt-in design for long life under vibration |
Mechanical Specifications
| Response Time | 100 seconds at 200%, 35 seconds at 300%, 13 seconds at 500% overload |
| Interrupting Capacity | 10 kA at 125 VAC/DC |
Part Numbers & Compatibility
| OEM Part Number | ACK-200 |
| Manufacturer Part Number | ACK200 |
| Cross-Reference Part Numbers | Equivalent to Eaton Bussmann ACK-200, Mersen ACK200, Ferraz Shawmut ACK200, Fusetron ACK-200 |
| UPC | 051712701440 |
Frequently Asked Questions
Q: What is the amperage and voltage rating for the DX ACK-200 fuse?
A: The DX ACK-200 is a 200 amp, time-delay fuse rated for 72 VDC in primary applications, with maximum ratings of 125 VAC/DC. It features copper terminals and bolt-in stud-mounting designed for heavy-duty vibration resistance in electric lift truck circuits.
Q: What are the response times for the DX ACK-200 at different overload levels?
A: The DX ACK-200 has the following response times: 100 seconds at 200 percent of rated current, 35 seconds at 300 percent, and 13 seconds at 500 percent overload. This time-delay characteristic protects against nuisance blows from momentary current spikes while responding to sustained faults.
Q: Which OEM forklift models are compatible with the DX ACK-200?
A: The DX ACK-200 is compatible with major electric lift truck brands including Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, and BT. Cross-references include Eaton Bussmann ACK-200, Mersen ACK200, Ferraz Shawmut ACK200, and Fusetron ACK-200.
Q: What is the interrupting capacity of the DX ACK-200 fuse?
A: The DX ACK-200 has a 10 kA interrupting capacity, meaning it can safely interrupt circuit currents up to 10,000 amps during fault conditions. This rating ensures the fuse will not rupture or create hazardous conditions when exposed to severe short circuits.
