Product Description

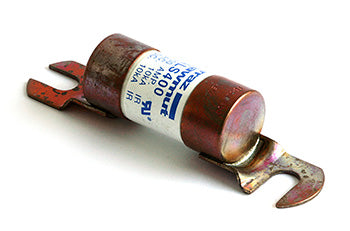

Crown CR 76924-008 is a 400A, 125V time delay fuse designed for main circuit protection in Crown electric lift trucks operating on 24V battery systems. Constructed with a fiberglass body and bolt-on terminal ends, this fuse ensures reliable circuit protection in demanding material handling applications.
Specifications
Electrical
| Rated Voltage | 125V |
| Rated Current | 400A |
| Fuse Application | Main circuit protection for electric trucks (24V battery systems) |
Material
| Body Material | Fiberglass |
Part Numbers
| OEM Part Number | CR 76924-008 |
| Compatible Equipment Category | Electric lift trucks (24V trucks only) |
Frequently Asked Questions
Q: What are the specifications of the CR 76924-008 fuse?
A: The CR 76924-008 is rated 400 amperes at 125 volts with time-delay protection. The fuse body is constructed from fiberglass and features bolt-on terminal ends. It is designed as a main circuit protection fuse for high-current electric lift truck applications.
Q: Which Crown electric trucks is the CR 76924-008 compatible with?
A: The CR 76924-008 is designed exclusively for Crown electric lift trucks operating on 24-volt battery systems. Do not use on 36-volt or 48-volt equipment. Verify your truck nameplate confirms 24V battery voltage before ordering.
Q: Why does the CR 76924-008 have a 400-amp rating?
A: The 400-amp rating reflects the high current draw from the main DC motor in 24-volt electric lift trucks. This main circuit fuse protects the entire truck electrical system against severe short circuits.
Q: What does the fiberglass body construction provide?
A: Fiberglass construction provides electrical insulation, heat resistance, and mechanical strength needed for high-current main circuit fuses in electric trucks. The material withstands arc temperatures if a severe short circuit occurs.
Q: What symptoms indicate a blown CR 76924-008?
A: A blown main circuit fuse causes complete electrical failure. The truck will not power on, the battery charger will not function, and no lights illuminate. Check the fuse element for a broken wire or discoloration, or test continuity with a multimeter.
Q: Can the CR 76924-008 be used on higher-voltage systems?
A: No. The 125-volt rating is designed for 24-volt battery systems with margin for voltage spikes. Using this fuse on 36-volt or 48-volt trucks creates an arc risk and circuit protection failure.
