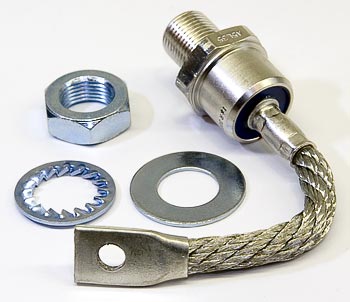

General Electric Rectifier Assembly - 300A
GE 259A9208PXC
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
General Electric rectifier assembly, OEM part number GE 259A9208PXC, rated for 300A maximum output current and 200VDC output voltage, for use in electric lift truck power systems. Assembly includes four-stud chassis mount design and aluminum heat sink construction.
Specifications
Electrical
| Rated Output Current | 300A maximum DC |
| Rated Output Voltage | 200VDC |
| Polarity | Single polarity DC output |
| Peak Reverse Voltage | 200V |
| Surge Current Capacity | 2400A peak (1 cycle, 60Hz) |
Part Numbers
| OEM Part Number | GE 259A9208PXC |
| Manufacturer Part Number | 259A9208PXCR |
Performance
| Service Factor | 1.0 at rated current and voltage |
Frequently Asked Questions
Q: What are the output specifications of GE 259A9208PXC?
A: GE 259A9208PXC is rated for 300A maximum output current and 200VDC output voltage. It delivers single polarity DC output with a peak reverse voltage rating of 200V and surge current capacity of 2400A peak (1 cycle, 60Hz).
Q: What is the physical design of GE 259A9208PXC?
A: The assembly features a four-stud chassis mount design with aluminum heat sink construction. This design ensures efficient thermal dissipation during continuous operation in lift truck power systems.
Q: What is the service factor rating for GE 259A9208PXC?
A: The service factor is 1.0 at rated current, meaning this rectifier is designed to operate at its full 300A rated capacity without derating under normal electric lift truck duty cycles.
Q: Which lift truck manufacturers specify GE 259A9208PXC?
A: This General Electric rectifier assembly is specified by Crown, Toyota, Raymond, Yale, Hyster, and other OEM electric lift truck manufacturers requiring 300A 200VDC power conversion.
