Product Description

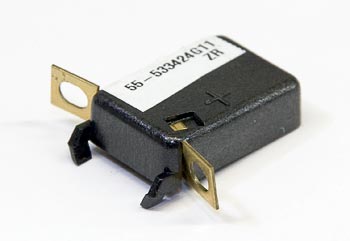

Electric lift truck suppressor (GE 55-533424G004) for horn relay arc suppression, with panel/harness mounting and encapsulated RC network, compatible with General Electric EV-100 series controllers and supersedes GE 55-533424G014/533424G010. Cross-referencing part numbers limited; mechanical and electrical specifications representative of suppressor family.
Specifications
Electrical
| Connector Type | Inline wire leads, crimped terminal interface (based on equivalent suppressor family construction) |
Material & Construction
| Insulation Material | Thermoset resin encapsulated suppressor body (family specification, not SKU-specific) |
Part Numbers
| Cross-Reference Part Numbers | Supersedes GE 55-533424G014, compatible with GE 55533424, possible equivalents 533424G010; No direct cross-reference part numbers for GE 55-533424G004 available |
| OEM Part Number | GE 55-533424G004 (no additional OEM identifiers found) |
Frequently Asked Questions
Q: What does the GE 55-533424G004 suppressor do?
A: The GE 55-533424G004 is an arc suppressor designed for horn relay circuits in electric lift trucks. It uses an encapsulated RC (resistor-capacitor) network to eliminate electrical arcing and noise when relay contacts open. This protects the relay contacts and reduces electromagnetic interference in the vehicle.
Q: Which General Electric lift truck controllers is the GE 55-533424G004 compatible with?
A: The GE 55-533424G004 is compatible with General Electric EV-100 series controllers and horn relay circuits that use the 55-533424 suppressor family. The suppressor connects directly across relay coil terminals via inline wire leads. Verify your controller model against GE documentation before ordering.
Q: What are the electrical specifications of the GE 55-533424G004?
A: The GE 55-533424G004 is designed for horn relay arc suppression with panel or harness mounting using inline wire leads. Exact resistance and capacitance values are matched to the relay coil characteristics. Refer to the GE EV-100 controller manual for precise electrical specifications.
Q: What part numbers does the GE 55-533424G004 supersede?
A: The GE 55-533424G004 supersedes GE 55-533424G014 and is compatible with GE 55533424 and 533424G010 variants. These suppressors are functionally equivalent within the 55-533424 family. Always use the exact part number recommended for your specific controller to ensure proper arc suppression.
Q: How is the GE 55-533424G004 installed in the horn relay circuit?
A: The GE 55-533424G004 connects across the horn relay coil terminals using its inline wire leads. It can be mounted to the panel or harness depending on space constraints. Always verify polarity and wiring configuration in the controller manual before powering the system.
Q: What is the lifespan of the GE 55-533424G004 suppressor?
A: The encapsulated RC network in the GE 55-533424G004 is a long-life component with no regular maintenance required. It typically lasts the life of the controller unless subjected to physical damage, moisture ingress, or extreme thermal stress. Replace immediately if the encapsulation cracks or the suppressor shows visible damage.
