Product Description

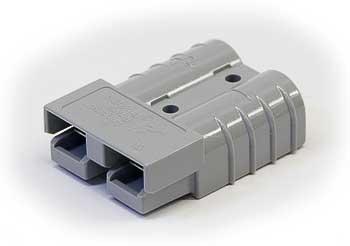

Gray connector, 50 Amp; SB50 series housing for electric lift trucks. Accepts 2 contacts, rated for 50A at 600VDC, designed for 6 AWG wire and featuring mechanical keying. Compatible with electric lift truck models using EZGO 13801G1 and Anderson Power Products 6331G1 equivalents.
Specifications
Electrical
| Current Rating | 50A continuous |
| Voltage Rating | 600VDC maximum |
Part Numbers
| Cross-Reference Part Numbers | EZGO 13801G1, EZGO 13801-G1, EZGO 18782G1 |
| OEM Part Number | 13801G1 |
| Equivalent Part Number | SB50 Series, Anderson Power Products 6331G1 |
Frequently Asked Questions
Q: What is the EZ 13801G1 connector used for?
A: The EZ 13801G1 is a gray SB50 series power connector rated for 50 Amp at 600VDC. It is designed for electric lift truck battery and charging systems where high-current connections are required.
Q: Which electric lift trucks use the EZ 13801G1 connector?
A: The EZ 13801G1 is compatible with electric lift truck models that use EZGO 13801G1 or Anderson Power Products 6331G1 equivalent connectors. Verify your equipment model and current connector designation before ordering.
Q: What are the electrical specifications of the EZ 13801G1?
A: The EZ 13801G1 is rated for 50 Amp continuous current at 600VDC maximum voltage. It accepts 2 contacts and is designed for 6 AWG wire. The connector features mechanical keying to prevent incorrect mating.
Q: What are the cross-reference part numbers for the EZ 13801G1?
A: The EZ 13801G1 is cross-referenced as EZGO 13801G1, EZGO 13801-G1, EZGO 18782G1, and Anderson Power Products 6331G1. When ordering, use your equipment OEM part number and verify the 50 Amp, 600VDC rating.
Q: Is the EZ 13801G1 compatible with different wire gauges?
A: The EZ 13801G1 is designed for 6 AWG wire. Do not force larger or smaller wire gauges into the contacts. Using incorrect wire gauge can result in poor electrical connection, overheating, or damage to the connector contacts.
