Product Description

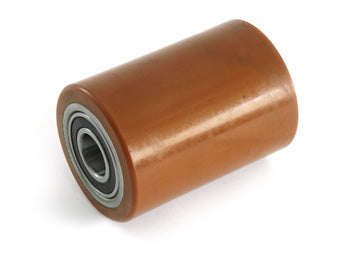

The Polyurethane Load Wheel is designed specifically for electric pallet jacks, providing durability and efficiency in material handling applications.
Specifications: 3.250 inch diameter x 4.500 inch width (3.250" x 4.500" | 3.25 x 4.5 wheel | 3-1/4 x 4-1/2 | 82.55mm x 114.30mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Constructed from high-quality polyurethane for enhanced wear resistance
• 95A durometer hardness for high performance
• Ideal for smooth operation on various surfaces
This load wheel is compatible with a range of electric pallet jacks, making it an essential component for efficient material handling.
Specifications
Material
| Wheel Material | Polyurethane |
Part Numbers
| Base Part Number | GW 2365 |
| Extended Life Variant | GW2365-XL (97A durometer) |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 4.5 |
Frequently Asked Questions
Q: How is GW 2365-A different from standard GW 2365?
A: GW 2365-A is an alternate variant of the standard GW 2365 with the same 3.250 inch diameter, 4.500 inch width, and 95A durometer specifications. The A suffix typically indicates a revised bearing specification or internal construction detail. Both wheels have a 25mm bearing bore and are functionally equivalent for most electric pallet jack applications. Use GW 2365-A if your jack specifically calls for this part number; otherwise, standard GW 2365 is interchangeable.
Q: Is the GW 2365-A compatible with my Crown WP2300 electric pallet jack?
A: Yes, GW 2365-A is compatible with Crown WP2300 and other electric pallet jacks that specify a 3.250 x 4.500 polyurethane wheel with 25mm bearing bore. Verify your jack parts diagram lists GW 2365 or GW 2365-A as an approved wheel assembly. If your jack uses a different bearing bore size (20mm, 30mm, or metric) or a different outer diameter, GW 2365-A will not fit and may damage the bearing hub.
Q: Can I swap GW 2365-A wheels between all four corners of my electric jack?
A: Yes, you can use GW 2365-A wheels on all load-bearing wheel positions on a standard electric pallet jack (typically all four corners are the same size and bore). All four wheels should be the same type and condition to ensure even load distribution and smooth steering. If one wheel is significantly more worn than others, replace all four at the same time to prevent handling problems and uneven wear on new wheels.
Q: What is the correct installation procedure for GW 2365-A?
A: Safely lift the jack on stands. Remove the retaining cotter pin or snap ring from the wheel axle. Slide the old wheel off by hand. Align the GW 2365-A wheel bore with the axle and slide it on until seated. Install the retaining cotter pin through the axle hole or replace the snap ring. Manually spin the wheel to verify smooth rotation and no binding. Lower the jack and test on a flat surface before returning to service. If the wheel binds or does not spin, remove it and check for debris or bearing damage.
Q: What are the maintenance requirements for GW 2365-A wheels?
A: Clean the wheel bore and axle bearing monthly or after every 100 hours of use. Remove any dirt, water, or debris. Lubricate the wheel bearing with a light machine oil or multipurpose grease every three months. Inspect the wheel surface for cracks, chunks, or flat spots during each cleaning cycle. Replace the wheel immediately if you see uneven wear, exposed bearing rings, or loss of wheel diameter of more than 0.125 inch. Proper maintenance typically extends GW 2365-A wheel life to 18 to 24 months.
