Product Description

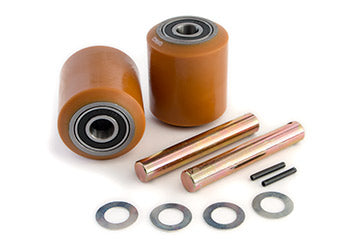

Load wheel replacement kit engineered for Big Joe LPT33 and P33 electric pallet trucks. Kit contains dual 3.0 inch diameter by 3.5 inch wide Durarun polyurethane load wheels rated at 95A Shore durometer. Assembly includes precision sealed ball bearings, hardened steel axle shafts, mounting bolts, and lock nuts. Supersedes OEM part numbers 1115-133002-4B and 11151330024B. Direct bolt-on replacement design ensures compatibility with factory mounting pattern on LPT33 chassis.
Compatibility: Fits pallet jacks made by Lift-Rite, model LPT33. SKU: GWK-LPT33-LW
Specifications
Assembly Components
| Bearing Type | Precision ball bearing assemblies, sealed construction |
Part Numbers & Compatibility
| Manufacturer Part Number | GWK-LPT33-LW |
| Cross-Reference Part Numbers | Replaces OEM 1115-133002-4B, equivalent to 11151330024B |
| Equipment Compatibility | Big Joe LPT33 electric pallet truck |
| Compatible Model Designation | Big Joe P33 electric pallet jack |
Wheel Specifications
| Wheel Material Composition | Polyurethane compound, 95A Shore durometer hardness |
Frequently Asked Questions
Q: What electric pallet trucks does the GWK-LPT33-LW fit?
A: The GWK-LPT33-LW load wheel kit is engineered for Big Joe LPT33 and Big Joe P33 electric pallet trucks. It is a direct bolt-on replacement compatible with the factory mounting pattern on LPT33 chassis. Verify your equipment nameplate matches LPT33 or P33 before installation.
Q: What are the wheel specifications for the GWK-LPT33-LW?
A: The GWK-LPT33-LW contains dual 3.0-inch diameter by 3.5-inch wide Durarun polyurethane load wheels rated at 95A Shore durometer. The 95A rating is significantly harder than standard 70D wheels, providing superior resistance to wear and deformation on heavy-duty electric lift trucks. Dual wheels distribute load evenly.
Q: Does the GWK-LPT33-LW replace the OEM Big Joe wheels?
A: Yes. The GWK-LPT33-LW supersedes Big Joe OEM part numbers 1115-133002-4B and 11151330024B. This kit is an OEM-equivalent direct replacement. It includes precision sealed ball bearings, hardened steel axle shafts, mounting bolts, and lock nuts. No modifications are needed.
Q: What is the difference between 70D and 95A polyurethane durometer ratings?
A: 95A Durarun polyurethane is significantly harder and more resistant to wear than standard 70D polyurethane. The 95A rating is ideal for electric trucks operating under continuous duty in high-intensity warehouse environments. 95A wheels require more electric power to turn but deliver longer service life and less deformation under load.
Q: What tools and procedure are needed to install the GWK-LPT33-LW?
A: Remove the existing wheels and axle shafts by unbolting the lock nuts from the LPT33 chassis. Slide in the new hardened steel axle shafts and position the dual Durarun wheels. Secure with the provided mounting bolts and lock nuts, hand-tightening first, then using a socket wrench to snug firmly. Do not over-tighten or bearing preload will be damaged.
Q: How often should the GWK-LPT33-LW wheels be inspected and maintained?
A: Inspect wheels every 2 weeks during continuous operation. The sealed ball bearings are pre-lubricated and do not require additional greasing. Check for flat spots, cracks, or embedded debris. The 95A Durarun material is highly durable; wheels typically perform 24 to 36 months under heavy industrial use. Replace immediately if structural cracks appear or if the truck does not respond normally to electric drive commands.
