Product Description

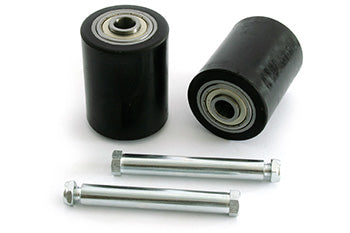

Load wheel replacement kit designed for Raymond RG30E electric skid lifter pallet jacks. Features dual 3.25 inch diameter by 4.5 inch width polyurethane wheels with 95A durometer rating. Complete assembly includes sealed roller bearings, hardened steel axles, lubrication fittings, and mounting hardware. Compatible with equipment rated for 3000 lbs capacity with 48 inch fork length and 31.5 inch maximum lift height. Engineered for electric pallet jack applications requiring durable wheel assembli
Compatibility: Fits pallet jacks made by Raymond, model RG30E. SKU: GWK-RG30E-LW
Specifications
Material & Construction
| Wheel Material | 95A polyurethane |
| Scissor Leg Material | Alloy steel, fully welded |
| Polyurethane Hardness | Shore D 95 |
Part Numbers
| OEM Part Number | GWK-RG30E-LW |
| Manufacturer Part Number | GWK-RG30E-LW |
| Compatible Equipment Models | Raymond RG30E, RG30M Ergonomic High Lift Pallet Jacks |
Frequently Asked Questions
Q: Will GWK-RG30E-LW wheels fit my Raymond RG30M high lift pallet jack?
A: Yes. GWK-RG30E-LW is cross-compatible with both RG30E and RG30M models. Both use the same 3.25 inch diameter by 4.5 inch width polyurethane wheel assembly and sealed bearing configuration. Verify your jack nameplate before ordering to confirm 3000 lbs capacity rating.
Q: What is the Shore D durometer rating and why does it matter?
A: The GWK-RG30E-LW features 95A Shore D polyurethane, which is a harder compound than standard load wheels. This 95A rating provides superior wear resistance on concrete and smooth warehouse floors. If your jack operates on rough or outdoor surfaces, this durometer may wear faster than softer compounds.
Q: Do I need special tools to replace the load wheel assembly?
A: No special tools required for most installations. You will need a socket wrench or adjustable wrench to remove the axle fasteners securing the old wheels. The GWK-RG30E-LW assembly includes pre-installed sealed roller bearings and hardened steel axles, so you only need to bolt it to your scissor leg frame. Do not force wheels onto axles; if resistance occurs, stop and verify axle diameter matches 0.875 inches.
Q: What maintenance schedule should I follow for these wheels?
A: Inspect wheels weekly for flat spots, cracks, or separation from the hub. The sealed bearings require no lubrication. If wheels show wear after 12 to 18 months of heavy use, replace as a complete set. Do not attempt to repack sealed bearings; they are maintenance-free units.
Q: Can I use GWK-RG30E-LW on a different Raymond model or competitor jack?
A: No. This kit is engineered specifically for the Raymond RG30E and RG30M series. The axle bore, wheel width (4.5 inches), and diameter (3.25 inches) are unique to these models. Using this assembly on unauthorized equipment will void the warranty and create safety hazards.
Q: What is the maximum load rating when these wheels are installed?
A: The GWK-RG30E-LW load wheels support the full 3000 lbs rated capacity of the Raymond RG30E and RG30M jacks when properly installed. Do not exceed equipment nameplate capacity. Overloading will accelerate wheel degradation and cause bearing failure within weeks.
