Product Description

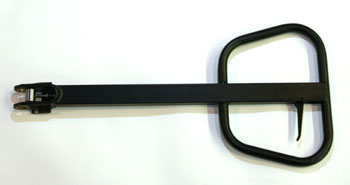

HANDLE ASSEMBLY
Specifications
Product Overview
| Product Type | Handle Assembly |
Physical Specifications
| Construction Material | Welded steel tubing |
| Finish | Corrosion-resistant powder coat |
| Internal Components | Hardened steel or ductile iron pump linkage with bronze bushings |
| Typical Service Life | 5-7 years or 10,000-15,000 cycles |
| Primary Function | Operator interface connecting pump mechanism to hydraulic cylinder for load raising and descent control |
Compatibility
| Compatible Brands | Toyota, Crown, Raymond, Yale |
Frequently Asked Questions
Q: What does the handle assembly do on a manual pallet jack?
A: The handle assembly is the primary operator interface for manual pallet jacks. It connects the pump mechanism to the hydraulic cylinder and allows the operator to engage the pump stroke to raise the load and control the descent valve to lower the load safely.
Q: Which manual pallet jack models are compatible with part 00591-43151-81?
A: This handle assembly fits Toyota, Crown, Raymond, and Yale manual pallet jacks with standard handle bore and mounting pin configurations. Confirm your jack model and serial range before ordering, as handle geometry and pump linkage geometry vary between manufacturers.
Q: What materials are used in this handle assembly?
A: The handle assembly is constructed from welded steel tubing with a corrosion-resistant powder-coat finish. Internal pump linkage components are hardened steel or ductile iron, and bearing surfaces are equipped with bronze bushings to support the pump stroke rod.
Q: How do I diagnose a faulty handle assembly?
A: Symptoms of handle assembly failure include excessive play or wobbling in the handle, stiff or grinding pump action, uneven lifting pressure, or inability to hold pressure when raising loads. Pump linkage wear or bushing degradation causes increased friction and reduced hydraulic efficiency.
Q: What is the expected service life of a manual pallet jack handle assembly?
A: A properly maintained handle assembly typically lasts 5 to 7 years or 10000 to 15000 pallet jack cycles. Lifespan is reduced by heavy loading, corrosive storage environments, and inadequate maintenance of the pump stroke rod seal. Regular lubrication of pivot points extends component life.
