GW 618

Frequently Asked Questions

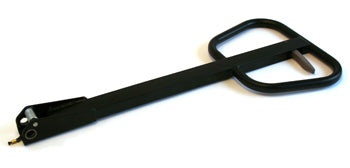

Q: What is the advantage of the GW 618 handle assembly over standard handle assemblies?
A: The GW 618 features formed structural steel construction and AISI 1045 carbon steel linkage rods, which provide superior strength and durability compared to standard handle assemblies. The three-position mechanical control linkage offers precise lift/lower/neutral engagement with reduced play or slippage. The pre-installed control chain and return spring eliminate field chain assembly, reducing installation time and risk of misalignment. The direct axle installation method simplifies mounting to standard pallet jack pump bodies. These features make the GW 618 suitable for heavy-duty warehouse and manufacturing environments with high cycle rates.

Q: Is the GW 618 pre-assembled and ready to install?
A: Yes. The GW 618 arrives fully assembled with the control chain and return spring already installed and adjusted. No additional chain routing, tension adjustment, or component assembly is required. Upon receipt, verify all components are present and undamaged, then proceed directly to installation on the pump body. The only adjustment needed may be fine-tuning the axle nut tightness after installation to ensure smooth handle operation without binding.

Q: How does the direct axle installation of the GW 618 differ from other mounting methods?
A: Direct axle installation means the GW 618 slides directly onto the axle pin protruding from the pump body, with the connection secured by an axle nut. This is the standard method for manual pallet jacks and contrasts with bolt-down or welded assemblies. The GW 618 direct axle design ensures: 1) Quick installation and removal for maintenance or replacement, 2) Compatibility with standard pump mounting interfaces, 3) Consistent performance across different jack models using the same pump body. Installation requires only a wrench; no drilling, welding, or special tools are needed.

Q: What is the expected cycle life of the GW 618 compared to standard assemblies?
A: The GW 618 formed structural steel construction and AISI 1045 carbon steel linkage rods provide extended cycle life compared to standard assemblies. Under normal warehouse conditions (20-50 cycles per day), the GW 618 can operate for 5-7 years. Under heavy-duty conditions (100-200+ cycles per day), it can perform reliably for 3-5 years. The pre-installed control chain and return spring are engineered for extended service. However, cycle life depends on proper maintenance: lubricate the control chain monthly and verify the axle nut remains tight. Replace the entire assembly if the return spring loses tension or the control linkage becomes binding.

Q: How do I know if the GW 618 is compatible with my pallet jack pump body?
A: The GW 618 is designed for compatibility with standard pallet jack pump mounting interfaces. To verify compatibility: 1) Locate your pump body part number or model number (usually stamped on the casting), 2) Cross-reference this number to confirm GW 618 compatibility in the manufacturer documentation, 3) Measure the axle pin diameter and mounting hole spacing on your existing handle assembly, 4) Compare these measurements to published GW 618 specifications provided by the supplier, 5) Confirm that your pump body uses a direct axle installation method (not bolt-down or welded). If uncertain, contact the pump body manufacturer or supplier before ordering.

Q: What should I do if the GW 618 return spring loses tension?
A: If the return spring loses tension, the handle will not automatically return to neutral when released, creating a safety hazard. The return spring cannot be adjusted or replaced in the field because it is integrated into the GW 618 assembly. You must replace the entire handle assembly. Do not attempt to use the pallet jack if the handle does not return to neutral reliably. Order a replacement GW 618 and install following the manufacturer instructions. Loss of spring tension typically results from age-related fatigue or corrosion; if this occurs prematurely (within 2-3 years), contact the supplier to investigate the cause.
