Product Description

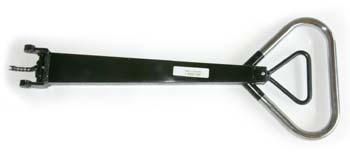

Mobile MO 3022 Handle Assembly engineered for manual pallet jack operation; compatible with Mobile ML55/ML45 M&M units. Supplied as OEM part MO 3022, cross-referencing MO 3022-1, ML3022-1, and MO30221. Fabricated from ASTM A500 Grade B carbon steel, powder coated, includes control pin mounting features and polypropylene molded grip. Dimensionally configured for 42 inch lever length, 1.25 inch outside diameter, 0.625 inch pin bore, and 2.00 inch mounting hole spacing. MIG welded per AWS D1.1.
Compatibility: Fits pallet jacks made by Mobile, model MO 3022. SKU: MO 3022
Specifications
Material & Construction
| Handle Material | Carbon steel tube, minimum wall 0.110 inch |
| Weld Specification | MIG welded per AWS D1.1 |
| Steel Specification | ASTM A500 Grade B |
Part Numbers
| OEM Part Number | MO 3022 |
| Cross-Reference Part Numbers | MO 3022-1, ML3022-1, MO30221 |
| Compatible Models | Mobile ML55, ML45 M&M |
Frequently Asked Questions
Q: What equipment does the MO 3022 handle assembly fit?
A: The MO 3022 handle assembly is designed for Mobile ML55 and ML45 M&M manual pallet jack units. This is an OEM part that cross-references to MO 3022-1, ML3022-1, and MO30221. Verify your jack model before ordering to confirm compatibility.
Q: What are the physical dimensions of the MO 3022 handle?
A: The handle is configured with a 42 inch lever length, 1.25 inch outside diameter tubing, 0.625 inch pin bore, and 2.00 inch mounting hole spacing. These dimensions ensure proper fit and control geometry on compatible Mobile manual jacks.
Q: What materials and construction methods are used in the MO 3022?
A: The MO 3022 is fabricated from ASTM A500 Grade B carbon steel tubing with a minimum wall thickness of 0.110 inch, MIG welded per AWS D1.1 specification. It features a powder coated finish and a polypropylene molded grip for operator safety and durability.
Q: What cross-reference part numbers should I know for the MO 3022?
A: The MO 3022 cross-references to MO 3022-1, ML3022-1, and MO30221. All of these part numbers reference the same OEM handle assembly. Use any of these numbers when searching for this component.
Q: Does the MO 3022 handle include control pin mounting features?
A: Yes. The MO 3022 is designed with control pin mounting features to secure the handle to the pallet jack frame and enable proper load control operation. These mounting locations are integrated into the base of the handle assembly.
