Product Description

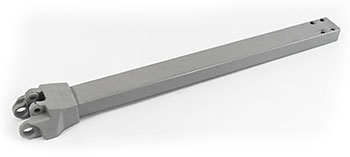

Bishamon Handle Weldment (BI 02302812) for BS Series manual pallet jacks. Fabricated from high-strength structural steel with continuous welds meeting AWS D1.1 standards. Features ergonomic 210° rotation, three-position hydraulic lever control, solid push rods, and integrated brake and foot guard assembly. Direct-fit replacement for Bishamon BS Series pallet jacks with self-contained hydraulic systems.
Specifications
Material & Construction
| Handle Material Specification | High-strength structural steel |
| Weld Standard | AWS D1.1 continuous welds |
| Handle Rotation Range | 210 degrees ergonomic |
Features & Components
| Hydraulic Lever Positions | Three-position |
| Push Rod Type | Solid construction |
| Brake Assembly | Integrated with foot guard |
Part Numbers
| Part Number | BI 02302812 |
| Manufacturer Part Number | BI 02302812 |
Compatibility
| Compatible Equipment | Bishamon BS Series manual pallet jacks with self-contained hydraulic systems |
Frequently Asked Questions
Q: What is the BI 02302812 handle weldment?
A: The BI 02302812 is an OEM handle weldment for Bishamon BS Series manual pallet jacks. It is a complete handle frame fabricated from high-strength structural steel with continuous welds meeting AWS D1.1 specifications. It includes the ergonomic handle, hydraulic control lever, brake assembly, and foot guard.
Q: What are the specifications of the BI 02302812 handle weldment?
A: The handle weldment features a 210 degree ergonomic rotation range, three-position hydraulic lever for lift and lower control, solid push rods, integrated brake foot guard, and high-strength structural steel construction with continuous AWS D1.1 welds.
Q: Does the BI 02302812 work with self-contained hydraulic systems?
A: Yes. The BI 02302812 is a direct-fit replacement for BS Series pallet jacks with self-contained hydraulic systems. The integrated three-position hydraulic lever is compatible with Bishamon sealed hydraulic circuits.
Q: What makes the BI 02302812 handle weldment durable?
A: The weldment is fabricated from high-strength structural steel with continuous welds per AWS D1.1, which ensures consistent joint integrity. The solid push rods eliminate wear points, and the integrated brake and foot guard reduce stress concentration on the main frame.
Q: Is the BI 02302812 compatible with non-BS Series Bishamon pallet jacks?
A: No. The BI 02302812 is designed specifically for Bishamon BS Series manual pallet jacks. Bishamon handles vary significantly across product lines. Do not attempt to fit this weldment to other Bishamon series without verifying mounting dimensions.
