Product Description

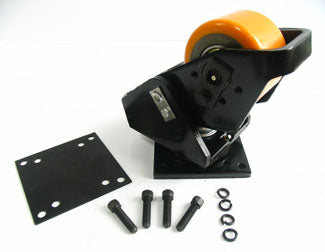

Crown CR 129929S001 heavy-duty caster assembly engineered for PE 4000 and PE 4500 series electric pallet jacks. Features 9.125-inch overall height with polyurethane compound 306 load wheel measuring 4 inches diameter by 2.5 inches width. Hardened steel zinc-plated housing incorporates centered swivel design with greaseable pivot bearing and PolyBlock polyurethane spring shock absorption system. Dual bolt pattern configuration (3.328 x 5.269 and 2.731 x 4.672 inches) with slotted 5 x 7 inch base
Specifications
Compatibility
| Compatible Models | Crown PE 4000, PE 4500 |
Material
| Wheel Material | Polyurethane |
| Housing Material | Hardened Steel Zinc-Plated |
Performance Specifications
| Overall Height | 9.125 inches |
| Load Wheel Diameter | 4 inches |
| Load Wheel Width | 2.5 inches |
| Swivel Design | Centered |
| Pivot Bearing | Greaseable |
| Shock Absorption System | PolyBlock Polyurethane Spring |
Mounting
| Dual Bolt Pattern Configuration | 3.328 x 5.269 and 2.731 x 4.672 inches |
| Base Dimensions | 5 x 7 inches (slotted) |
Part Numbers
| Primary Part Number | CR 129929S001 |
| Cross-Reference Part Numbers | CR129929-S001, CR129929S001, 129929S001 |
Frequently Asked Questions
Q: What is the overall height and load wheel size of the CR 129929S001?
A: The CR 129929S001 has an overall height of 9.125 inches. The polyurethane load wheel measures 4 inches in diameter by 2.5 inches in width.
Q: What materials are used in the CR 129929S001 caster assembly?
A: The CR 129929S001 features a polyurethane compound 306 load wheel, hardened steel zinc-plated housing, and a PolyBlock polyurethane spring shock absorption system.
Q: What is the swivel bearing design in the CR 129929S001?
A: The CR 129929S001 incorporates a centered swivel design with a greaseable pivot bearing, allowing for full 360-degree rotation.
Q: What bolt pattern configurations does the CR 129929S001 support?
A: The CR 129929S001 features a dual bolt pattern configuration with dimensions of 3.328 x 5.269 inches and 2.731 x 4.672 inches, plus a slotted 5 x 7 inch base.
Q: Which Crown electric pallet jack models is the CR 129929S001 compatible with?
A: The CR 129929S001 is engineered for Crown PE 4000 and PE 4500 series electric pallet jacks.
