Product Description

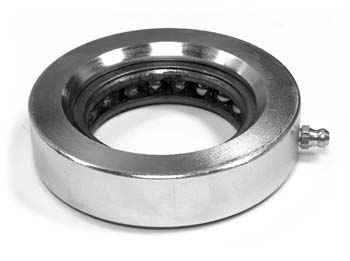

Lift-Rite LF PH 10234 heavy duty thrust bearing assembly is designed for manual pallet jack models LS80, LS100, and LM50. Manufactured with SAE 1045 carbon steel and case hardened for durability, this bearing supports up to 10,000 lbs and features a steel ball cage and standard bolt pattern for secure chassis mounting.
Compatibility: Fits pallet jacks made by Lift-Rite, model LF PH 10234. SKU: LF PH 10234
Specifications
Material & Construction
| Material | SAE 1045 carbon steel |
Mechanical Specifications
| Bearing Thickness | 0.625 inch (nominal) |
Part Numbers & Compatibility
| Manufacturer Part Number | PH-10234 |
| OEM Part Number | PH-10234 |
| Cross-reference Part Numbers | PL-10234, H-10234, PL-10234A |
| Replaces/Supersedes Part Numbers | PL-10234, H-10234 |
| Equivalent/Interchange Part Numbers | PL-10234A |
| Compatible Lift-Rite Models | LS80 8000 lb HPT; LS100 10000 lb HPT; LM50 Low Profile Truck |
Performance Specifications
| Service Factor | 1.10 minimum at rated load |
| Design Life | Designed for 100,000 load cycles minimum |
Frequently Asked Questions
Q: Which Lift-Rite pallet jack models does the LF PH 10234 thrust bearing fit?
A: The LF PH 10234 is designed for Lift-Rite manual pallet jack models LS80 (8,000 lb capacity), LS100 (10,000 lb capacity), and LM50 (Low Model). Cross-reference part numbers include PL-10234, H-10234, and PL-10234A.
Q: What load capacity does the LF PH 10234 bearing support?
A: The LF PH 10234 is rated to support up to 10,000 lbs. It is a heavy-duty thrust bearing assembly designed for high-capacity manual pallet jacks operating at 24-inch load centers in warehouse and material handling applications.
Q: What is the LF PH 10234 made from?
A: The LF PH 10234 is manufactured from SAE 1045 carbon steel and is case hardened for maximum durability. It features a steel ball cage for load distribution and uses a standard bolt pattern for secure chassis mounting.
Q: What other part numbers are equivalent to the LF PH 10234?
A: The LF PH 10234 (OEM part number PH-10234) is equivalent to and interchangeable with cross-reference numbers PL-10234, H-10234, and PL-10234A. Verify your equipment documentation to confirm the correct original part number before ordering.
Q: How often should the LF PH 10234 bearing be serviced?
A: The LF PH 10234 is a sealed heavy-duty bearing assembly and does not require periodic lubrication under normal operating conditions. Inspect for noise, grinding, or play during routine equipment maintenance. If the bearing becomes loose or damaged, replacement is necessary.
Q: Can the LF PH 10234 be used on equipment other than Lift-Rite models?
A: The LF PH 10234 is engineered specifically for Lift-Rite LS80, LS100, and LM50 models. Do not attempt to use this bearing on different equipment brands or models, as mounting patterns and load requirements differ significantly across manufacturers.
