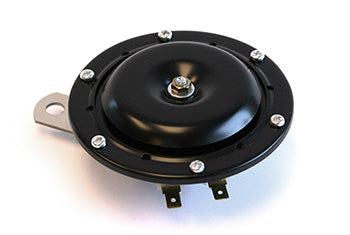

Horn Assembly for Hyster and JLG 3200 Series Electric Lift Truck
1490076
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
OEM forward horn assembly for electric lift trucks, Hyster part 1490076; designed for compatibility with 12-48VDC electrical systems. Factory mounting bracket and steel housing provide direct fit and high sound output (107 dB). Standard 3-pin spade terminals. Rated for 750,000 actuations.
Specifications
Part Numbers & Compatibility
| Make | Hyster, JLG |
| Model | 3200 Series |
| Part Number | 1490076 |
| Manufacturer Part Number | HY1490076 |
| Application Compatibility | Designed for Hyster electric lift trucks; compatible with 12VDC, 24VDC, 36VDC, and 48VDC electrical systems |
Electrical Specifications
| Operating Voltage Range | Compatible from 12VDC to 48VDC |
| Current Draw | Maximum 3.2A at 48VDC, 6.1A at 12VDC |
Performance Specifications
| Life Cycle Rating | Service life rated at 750,000 actuations |
Additional Specifications
| Terminal Type | 3-pin spade terminal interface |
| Housing Material | Steel with epoxy-coated finish |
| Minimum Efficiency | 85% audible efficiency at nominal voltage |
| Sound Output | 107 dB |
| Mounting Bracket | Factory mounting bracket for direct fit |
Frequently Asked Questions
Q: Which makes and models is the 1490076 horn assembly compatible with?
A: The 1490076 is designed for use on Hyster and JLG electric lift trucks in the 3200 Series.
Q: What materials are used in the construction of the 1490076 horn assembly?
A: The 1490076 features a steel housing and factory mounting bracket, ensuring durability and long service life.
Q: How do I know when to replace the 1490076 horn assembly?
A: Replace the 1490076 when it shows signs of wear, such as reduced sound output or damage to the housing.
Q: What type of terminals does the 1490076 horn assembly use?
A: The 1490076 uses standard 3-pin spade terminal connectors for easy installation.
