Product Description

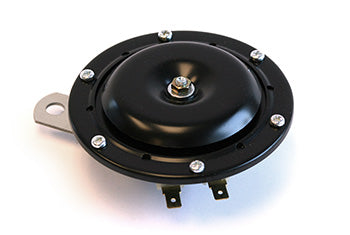

A000003063 is an electronic horn assembly designed for electric lift trucks, with operational voltage range from 12 to 48 VDC, maximum 0.8 amp current draw, and output of 107 dB at one meter. Compatible with CAT, HELI, and Hangcha forklift trucks and other electric pallet truck applications. Features iron body with baked paint finish and offset mounting bracket for easy installation.
Specifications
Electrical
| Nominal Voltage Range | 12 to 48 VDC |
| Rated Current Draw | 0.8 amps maximum |
| Sound Output Level | 107 dB at 1 meter |
| Terminal Configuration | 2-terminal quick connect |
Material
| Horn Body Material | Iron, finished with baked enamel coating |
Part Numbers
| OEM Part Number | A000003063 |
Frequently Asked Questions
Q: What voltage range does the A000003063 horn assembly support?
A: The A000003063 operates across a nominal voltage range of 12 to 48 VDC, making it compatible with most electric lift truck battery systems. Verify your equipment voltage before installation to prevent equipment damage.
Q: Which electric lift truck brands is this horn compatible with?
A: This electronic horn assembly is designed for CAT, HELI, and Hangcha electric forklift trucks, as well as other electric pallet truck applications. Cross-reference your equipment model against the compatible brand list before ordering.
Q: What is the sound output level and current draw for the A000003063?
A: This horn produces 107 dB of sound output measured at one meter distance. Maximum current draw is 0.8 amps, which is well within the capacity of standard truck wiring and battery systems.
Q: What materials is this horn assembly made from?
A: The horn body is constructed from iron with a baked enamel finish for corrosion resistance and durability in warehouse and outdoor environments. The offset mounting bracket is designed to accommodate standard bolt-on applications found on most electric lift trucks.
Q: What terminal configuration does the A000003063 use?
A: This horn features a 2-terminal quick connect configuration, allowing for rapid installation and removal without special tools or wire crimping. Ensure the positive and negative terminals match your truck wiring polarity to prevent malfunction.
Q: How should this horn be maintained to ensure long service life?
A: Keep the horn dry and clean, and inspect the connection terminals monthly for corrosion or looseness. If sound output decreases noticeably or the horn fails to operate, check for corroded terminals, loose wiring, or dead battery conditions. The baked enamel finish provides years of protection if not damaged.
