Product Description

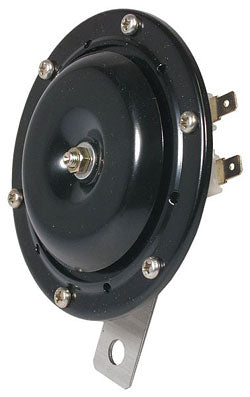

24VDC electric horn, compatible with lift trucks and pallet jacks, produces 110 dB signal, direct-fit replacement for OEM P23309-01 and cross-referenced PM23309-01/PR23309-01, single center mount, ABS casing with stainless steel diaphragm.
Specifications
Electrical
| Rated Voltage | 24VDC nominal |
| Sound Pressure Level | 110 dB at 1 meter |
| Connection Type | 2 terminal screw posts |
| Current Draw | ≤0.6A at 24VDC |
Part Numbers
| Manufacturer Part Number | P23309-01 |
| Cross-Reference Part Numbers | PM23309-01, PR23309-01 |
| Replaces/Supersedes | PM23309-01 |
Frequently Asked Questions
Q: What are the electrical specifications for the P23309-01 horn?
A: The P23309-01 is a 24VDC electric horn with a rated voltage of 24VDC nominal. Current draw is 0.6 amperes at 24VDC. It connects via two terminal screw posts for simple wiring in lift truck and pallet jack electrical systems.
Q: What is the sound output level of the P23309-01?
A: The P23309-01 produces a 110 decibel sound pressure level signal at one meter distance. This output level meets standard audible warning requirements for lift trucks and material handling equipment operation.
Q: What equipment types use the P23309-01 horn?
A: The P23309-01 is compatible with 24VDC lift trucks and pallet jacks requiring an electric warning horn. Confirm your equipment voltage is 24VDC before ordering. A 12VDC or 48VDC system will not operate this horn correctly.
Q: What are the mounting and material specifications for the P23309-01?
A: The P23309-01 features a single center mount design for straightforward installation on equipment brackets. The horn housing is constructed from ABS plastic casing with a stainless steel diaphragm. The stainless steel component resists corrosion in outdoor and cold storage environments.
Q: Are there cross-reference part numbers for the P23309-01?
A: Yes. The P23309-01 cross-references to PM23309-01 and PR23309-01. These part numbers are interchangeable for compatibility verification. The P23309-01 is also a direct replacement for OEM P23309-01 specifications.
