Product Description

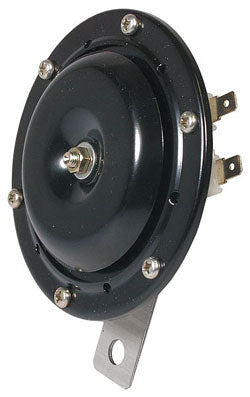

Raymond OEM part RA 590-640-101 is a universal 24V horn for electric lift trucks, rated at 110 dB with 3-terminal connection, designed for continuous duty and compatible with select Raymond models. Equivalent parts include RA 590-642-001 and RA 590-643-001.
Specifications
Electrical
| Rated Operating Voltage | 24VDC |
| Sound Output | 110 dB nominal |
| Voltage Range | 24VDC to 48VDC supported terminals (compatible cross models) |
| Control Circuit Type | Direct-connection to lift truck low-voltage circuit |
Material & Construction
| Horn Shell Material | High-impact ABS housing |
| Diaphragm Material | Stainless steel sensing diaphragm |
Part Numbers & Compatibility
| OEM Part Number | RA 590-640-101 |
| Cross-Reference Part Numbers | RA 590-642-001, RA 590-643-001, RA 590-643-001-ORG |
Performance Specifications
| Duty Cycle | Continuous rated at 24VDC |
| Nominal Current Draw | ≤ 2.5A at 24VDC |
Frequently Asked Questions
Q: What is the voltage and sound output rating for the RA 590-640-101?
A: The RA 590-640-101 operates at 24VDC nominal and produces 110 dB sound output, rated for continuous duty at 24VDC.
Q: What cross-reference parts are equivalent to the RA 590-640-101?
A: The RA 590-640-101 has cross-reference equivalents including RA 590-642-001 and RA 590-643-001. These parts are interchangeable for Raymond lift truck applications.
Q: What terminal configuration does the RA 590-640-101 have?
A: The RA 590-640-101 features a 3-terminal connection design for integration with Raymond electric lift truck control systems.
Q: What voltage range does the RA 590-640-101 support?
A: The RA 590-640-101 is rated 24VDC to 48VDC across compatible cross-reference models. Verify your equipment voltage before ordering.
Q: Is the RA 590-640-101 rated for continuous operation?
A: Yes, the RA 590-640-101 is continuous duty rated at 24VDC, designed for reliable operation in industrial material handling applications.
