Product Description

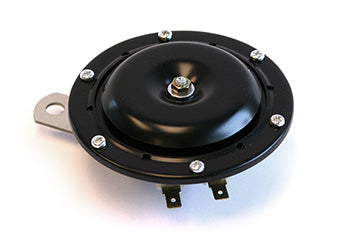

Dual-voltage electric warning horn assembly engineered for industrial lift truck applications. Unit operates across 36VDC to 48VDC systems, producing 105 dB acoustic output through electronic H-tone circuitry. Features two-terminal connection with heavy-gauge wiring, 3.875-inch diameter housing, and rated service life exceeding 750,000 operational cycles. Suitable for electric counterbalance and reach trucks in warehouse and material handling environments operating within -25°C to +40°C temperat
Specifications
Compatibility
| Application Range | Electric lift trucks rated 1 to 3 metric tons |
Electrical
| Operating Voltage Range | 36VDC to 48VDC nominal |
| Voltage Configuration | Dual voltage compatible (36V/48V) |
Material
| Housing Material | Ferrous metal with protective coating |
Part Numbers
| Primary Part Number | 93347 |
Performance
| Operational Life Cycle | 750,000 actuations minimum |
Frequently Asked Questions
Q: What is the voltage specification for part 93347?
A: SKU 93347 is a dual-voltage warning horn assembly rated for 36VDC to 48VDC nominal operation. This dual-voltage design accommodates both 36V and 48V electric lift truck systems without modification, making it compatible with a wider range of equipment.
Q: What is the acoustic output and rated lifespan of this horn assembly?
A: This unit produces 105 dB acoustic output through electronic H-tone circuitry, providing clear audible warning in warehouse and material handling environments. Rated operational life exceeds 750,000 cycles, ensuring extended service in continuous-duty applications.
Q: Which electric lift truck types is this horn compatible with?
A: Part 93347 is engineered for electric counterbalance trucks and reach trucks rated 1 to 3 metric tons. It is compatible with equipment from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, and Clark. Verify your equipment voltage system before ordering.
Q: What are the physical and environmental specifications?
A: The housing is 3.875 inches in diameter, constructed from ferrous metal with protective coating for corrosion resistance. The unit features two-terminal heavy-gauge wiring connectors and operates reliably across -25°C to +40°C temperature range, suitable for cold storage and warehouse environments.
Q: What is the expected lifespan and maintenance interval?
A: With a minimum rated service life of 750,000 operational cycles, this horn assembly provides extended durability in industrial applications. In typical warehouse use, replacement is necessary only upon failure or significant acoustic degradation. No routine maintenance is required.
