Product Description

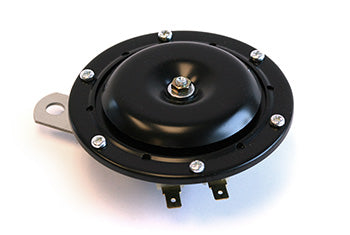

Crown CR 078708-5 is an electronic horn rated for 36VDC operation, producing 110 dB sound pressure level at 1 meter, and designed for direct replacement in Crown electric lift trucks. The unit features a 4.5 inch diameter housing with dual terminal connections. OEM, manufacturer, and cross-reference part numbers are included for compatibility and specification control.
Specifications
Electrical
| Rated Voltage | 36 VDC |
| Rated Sound Pressure Level | 110 dB at 1 meter |
Material
| Housing Material | ABS or steel composite; manufacturer-specific |
Part Numbers
| Manufacturer Part Number | CR 078708-5 |
| OEM Part Number | 078708-5 |
| Cross-Reference Part Numbers | CR078708-5, CR0787085, 0787085 |
Performance
| Service Life | Rated minimum 60,000 cycles; manufacturer-specific |
Frequently Asked Questions
Q: What is the rated voltage for the CR 078708-5?
A: The CR 078708-5 is rated for 36VDC operation. This electronic horn is designed for Crown electric lift trucks and stackers that operate on 36-volt electrical systems.
Q: What is the sound pressure level output?
A: The CR 078708-5 produces 110 dB sound pressure level at 1 meter. This output level is higher than standard mechanical horns and provides enhanced warning signaling in industrial environments.
Q: What are the physical dimensions and housing specifications?
A: The CR 078708-5 features a 4.5 inch diameter housing with dual terminal connections. The housing material is ABS or steel composite, depending on manufacturer specification.
Q: What is the service life rating?
A: The CR 078708-5 is rated for a minimum service life of 60,000 cycles. This cycle rating applies to standard industrial duty cycle operation.
Q: What are the cross-reference part numbers for the CR 078708-5?
A: Cross-reference part numbers include CR078708-5, CR0787085, and 0787085. The OEM and manufacturer part number is 078708-5.
