Product Description

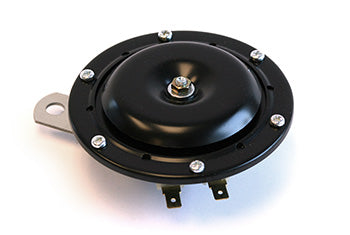

Hyster HY 1196501 36V electric horn is an OEM signaling device designed for operator warning functions on Hyster electric lift trucks. Features include 36VDC operation, continuous duty cycle, and compatibility with select Hyster lift truck models.
Specifications
Electrical Specifications
| Nominal Operating Voltage | 36VDC |
| Signal Sound Output | Nominal 105 dBA |
| Current Draw | ≤ 1.5A at 36VDC |
Mechanical Specifications
| Operating Position | Mountable in all orientations |
Part Numbers & Compatibility
| OEM Part Number | HY 1196501 |
| Manufacturer Part Number | 1196501 |
Performance Specifications
| Duty Cycle | Continuous duty at nominal voltage |
Frequently Asked Questions
Q: What is the operating voltage of the HY 1196501 electric horn?
A: The HY 1196501 operates at 36VDC and is designed as an OEM signaling device for operator warning functions on Hyster electric lift trucks. Confirm your equipment uses a 36-volt system before ordering.
Q: What is the sound output level of the HY 1196501 horn?
A: The HY 1196501 produces a nominal output of 105 dBA. This sound level meets ANSI and OSHA audible alert requirements for industrial material handling equipment in warehouse environments.
Q: What is the current draw of the HY 1196501 horn at 36VDC?
A: The HY 1196501 draws approximately 1.5 amperes at 36VDC nominal voltage. Verify your truck charging system and wiring gauge can supply this continuous current without voltage drop.
Q: Can the HY 1196501 horn be mounted in any orientation?
A: Yes, the HY 1196501 is mountable in all orientations and maintains continuous duty cycle operation at nominal 36VDC. No position restrictions exist for horizontal, vertical, or angled mounting.
Q: How long does the HY 1196501 horn last in continuous operation?
A: Lifespan depends on activation frequency and duty cycle. In typical warehouse applications with periodic signaling (not continuous sounding), the horn can operate for years. Replace if output diminishes, sound becomes intermittent, or the horn fails to respond to control signals.
Q: What Hyster lift truck models use the HY 1196501 horn?
A: The HY 1196501 is compatible with select Hyster electric lift truck models that operate 36VDC control systems. Check your equipment manual or parts diagram to confirm the correct horn part number for your specific truck model and serial range.
