Product Description

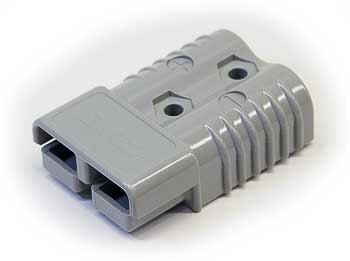

The 317-1072-P is a reinforced polycarbonate panel mount housing for SB175 Series 175A power connectors designed for electric lift truck applications. This gray housing features snap-in dual latch tabs for secure mechanical connection and is engineered to handle continuous cycling without degradation. With a 600VDC maximum working voltage rating and UL94 V-0 flammability certification, the 317-1072-P delivers reliable battery power distribution and connectivity in electric pallet jacks, reach trucks, and order pickers from major manufacturers including Crown, Toyota, Yale, Raymond, Hyster, and Jungheinrich.
Specifications
Electrical
| Rated Voltage | 600VDC maximum (housing only, dependent on installed contacts) |
Material
| Material Specification | Reinforced polycarbonate, UL94 V-0 rating |
Physical Specifications
| Dimensions | 3.25 x 2.00 x 1.15 in |
| Mounting Hole Diameter | 0.215 in |
| Flammability Rating | UL94 V-0 |
Part Information
| Manufacturer Part Number | 317-1072-P |
| Connector Series | SB175 (175 Ampere) |
Performance
| Operating Duty Cycle | Continuous mechanical cycling |
| Housing Design | Panel mount with snap-in dual latch tabs |
Frequently Asked Questions
Q: What material and ratings does the 317-1072-P housing have?
A: The 317-1072-P is manufactured from reinforced polycarbonate and carries a UL94 V-0 flammability rating. It is rated for 600VDC maximum working voltage when properly assembled with compatible contacts.
Q: What are the physical dimensions and mounting specifications for the 317-1072-P?
A: The 317-1072-P nominal dimensions are 3.25 x 2.00 x 1.15 inches with a mounting hole diameter of 0.215 inches. This is a panel mount housing designed for fixed installation on equipment chassis or battery charger enclosures.
Q: Is the 317-1072-P housing for the SB350 or SB175 series connector system?
A: The 317-1072-P is engineered for the SB175 Series 175A power connectors, not SB350. The SB175 series is rated for 175 amperes and is used in electric lift truck applications. Do not mix SB175 and SB350 components.
Q: What design features does the 317-1072-P gray housing include?
A: The 317-1072-P features snap-in dual latch tabs for secure mechanical connection and is designed for continuous mechanical cycling duty. This housing is commonly used in electric pallet jacks, reach trucks, and battery charger systems from Crown, Toyota, Raymond, Yale, and similar manufacturers.
Q: What is the operating duty cycle rating for the 317-1072-P housing?
A: The 317-1072-P is rated for continuous mechanical cycling, meaning it can handle repeated connection and disconnection operations throughout normal equipment service life without degradation of the snap-in latch mechanism or housing material.
