Battery Connectors for Electric Lift Truck
SB949
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

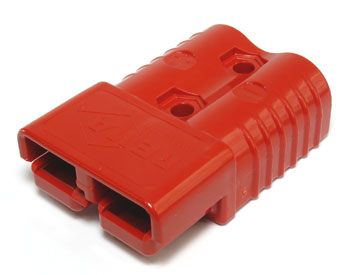

SB949 HOUSING (SB175 RED) is a high-impact thermoplastic connector housing for 175A electric lift truck battery systems. Compatible with 1/0 to 6 AWG contacts, rated up to 600VDC, and engineered for over 10,000 mating cycles. Features UL94 V-0 flame retardancy and standard SB175 panel mount compatibility.
Specifications
Electrical
| Voltage Rating | 600VDC maximum |
| Current Rating | 175A |
| Contact Compatibility | 1/0 to 6 AWG |
Material & Construction
| Housing Material | High-impact thermoplastic |
| Flame Retardant Specification | Self-extinguishing per UL94 V-0 |
| Mating Cycles | Over 10,000 |
| Panel Mount Compatibility | Standard SB175 |
Part Information
| Part Number | SB949 |
Frequently Asked Questions
Q: What are the contact and amperage specifications for the SB949?
A: The SB949 is a high-impact thermoplastic housing rated for 175A continuous current at 600VDC maximum. It accommodates 1/0 to 6 AWG contacts and is designed for battery connector applications on electric lift trucks from Crown, Toyota, Raymond, Hyster, and Jungheinrich.
Q: How many mating cycles can the SB949 handle?
A: The SB949 is engineered for over 10,000 mating cycles. This durability makes it suitable for frequent battery disconnect and reconnect operations on industrial electric lift trucks and material handling equipment.
Q: Does the SB949 meet flame retardant standards?
A: Yes. The SB949 housing is manufactured from UL94 V-0 self-extinguishing thermoplastic material, meeting flame retardant safety standards required for electrical enclosures and battery connectors in industrial equipment.
Q: Is the SB949 compatible with other SB175 series components?
A: Yes. The SB949 red housing uses standard SB175 panel mount configuration and accepts 1/0 to 6 AWG contacts. It is compatible with other SB175 components and accessories in the connector family.
Q: What wire gauge range does the SB949 accept?
A: The SB949 accommodates 1/0 to 6 AWG contact sizing. This range covers most battery cable applications on 150A to 350A electric lift truck systems. Verify your cable gauge matches the contact rating before ordering.
