Product Description

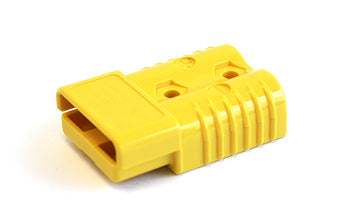

HOUSING (SB175 YELLOW)
Specifications
Physical Specifications
| Connector Series | SB175 |
| Housing Color | Yellow |
| Amperage Rating | 175A |
| Voltage Rating Maximum | 600VDC |
| Material Construction | Reinforced Polycarbonate |
| Flammability Rating | UL94 V-0 |
Compatibility
| Application | Electric lift trucks, battery charging systems, power distribution |
| Compatible Housing Variants | Also available in blue (317-1073-P) and gray (317-1072-P) |
Frequently Asked Questions
Q: What is the 317-1074-P yellow housing used for in electric lift truck systems?
A: The 317-1074-P is an SB175 series yellow housing designed for 175A power connectors in electric lift truck battery charging and power distribution. Yellow color serves as visual identification. It fits equipment from Crown, Toyota, Raymond, Yale, Hyster, and similar manufacturers using SB175 connectors.
Q: How does the 317-1074-P yellow SB175 housing differ from the 317-1073-P blue housing?
A: Both are SB175 series housings with identical electrical specifications of 175A rating and 600VDC maximum. The only difference is color coding: the 317-1074-P is yellow and the 317-1073-P is blue. Color selection is typically determined by equipment manufacturer or fleet identification requirements.
Q: Is the 317-1074-P compatible with SB350 contacts and housings?
A: No. The 317-1074-P is an SB175 housing and is not compatible with SB350 series contacts or housings. Do not mix connector series. Verify part numbers specify SB175 designation before assembly to avoid incompatible mating.
Q: What material is the 317-1074-P housing made from?
A: The 317-1074-P is constructed from reinforced polycarbonate with UL94 V-0 flammability rating, identical to the 317-1072-P and 317-1073-P SB175 housings. This provides durability and corrosion resistance for industrial material handling equipment environments.
