Product Description

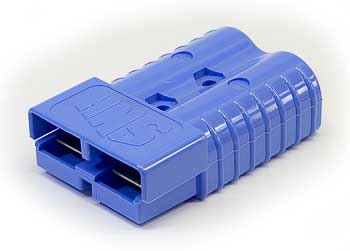

HOUSING (SB350 BLUE)
Specifications
Product Overview
| Product Type | Battery Connector Housing |
| Number of Contacts | 2 |
Physical Specifications
| Amperage Rating | 350 Amps |
| Voltage Rating | 48 Volts |
| Color | Blue |
| Housing Material | Plastic |
| Connector Series | Anderson SB350 |
| Included Components | Housing body, contact inserts, dust cover, mounting hardware |
Compatibility
| Compatible Cable Gauge | 2/0 AWG |
| Application | 48-volt electric lift trucks, electric forklifts, battery charging circuits |
Frequently Asked Questions
Q: What is SKU 00591-09082-81?
A: SKU 00591-09082-81 is an SB350 blue battery connector housing. This blue housing is used in Anderson Power Products SB350 connector assemblies for high-amperage charging circuits on 48-volt electric lift trucks.
Q: Why is the housing color blue instead of gray or black?
A: The blue color indicates this is an SB350 high-current connector rated for 350 amps. Color-coded housings help technicians quickly identify amperage rating and prevent mismatched connections. Never mix housings from different SB-series amperage classes.
Q: Which lift trucks use SB350 blue housings?
A: SB350 blue housings are used on Toyota, Crown, Raymond, Hyster, Jungheinrich, and other OEM electric lift trucks with high-amperage battery charging systems. Confirm your equipment connector model before ordering.
Q: What is included in a complete SB350 housing assembly?
A: A complete SB350 assembly includes the blue plastic housing body, two 2/0 AWG contact inserts, a dust cover, and mounting hardware. If you need only the housing shell, this SKU provides the housing component only.
Q: How do I install a new housing on an existing connector?
A: Disconnect battery power. Remove the old housing by unbolting the cable lugs and releasing the connector latch clips. Slide the crimped cable contacts into the new blue housing, ensuring they seat fully. Reattach mounting hardware. Test with multimeter before energizing.
Q: Can I use an SB350 blue housing on cables prepared for SB50 or SB175?
A: No. SB350 housings accept only SB350 contacts and cable sizes. Mixing housing classes will result in loose connections, arcing, and safety hazards. Always match housing color to your cable amperage rating and contact gauge.
