Product Description

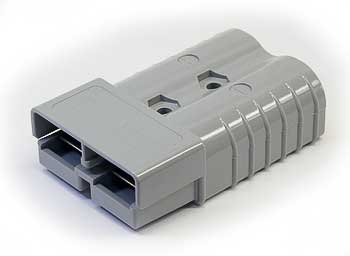

HOUSING (SB350 GRAY)
Specifications
Product Overview
| Product Type | Battery Connector Housing |
Physical Specifications
| Connector Series | SB350 |
| Housing Color | Gray |
| Cable Size | 2/0 AWG |
| Amperage Rating | 350A Continuous |
| Maximum Voltage | 600VDC |
| Contact Set Compatibility | SB350 Contact Sets |
Compatibility
| Application | Electric Lift Trucks, Pallet Jacks, Battery Systems |
Frequently Asked Questions
Q: What is the SB350 housing used for?
A: The SB350 housing is a gray connector housing designed for use in 2/0 AWG cable battery connectors on electric lift trucks. It provides the main structural enclosure for the contact set and mating connectors.
Q: What connector series is the SB350 housing compatible with?
A: This housing is part of the SB350 connector series and works with SB350 contact sets rated for 350 amps continuous at up to 600VDC. It is designed to accommodate 2/0 AWG cable.
Q: Can the SB350 housing be used with different cable sizes?
A: No. The SB350 housing is specifically designed for 2/0 AWG cable. Using it with different cable sizes will result in improper fit and connection reliability issues.
Q: Which electric lift trucks use the SB350 connector housing?
A: The 33-10117 is compatible with major electric pallet jack manufacturers including Hyster, Yale, Crown, Toyota, Clark, and Raymond equipment that utilize 24V battery systems and 2/0 AWG cable configurations.
Q: What is the maximum amperage and voltage rating for the SB350 housing?
A: The SB350 housing accommodates contact sets rated for 350 amps continuous operation at maximum voltages up to 600VDC, suitable for standard 24V lift truck battery systems.
Q: Is the SB350 housing weather-resistant?
A: Yes. The gray housing design provides weather-resistant protection for battery connections, making it suitable for both indoor and covered outdoor dock and warehouse environments.
