Product Description

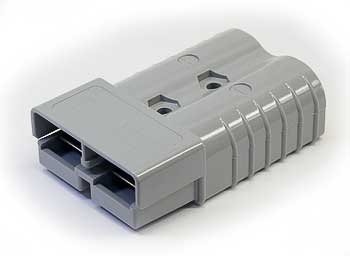

SB-906 is a gray SB350 series battery connector housing rated 350 amps (600VDC max), constructed from impact-resistant thermoplastic, and provides heavy-duty, genderless high current connections for electric lift truck battery and charger applications. Cross-references include APP 6325G1 and equivalent SB906/6325 series housings.
Specifications
Electrical
| Current Rating | 350 amps continuous |
| Voltage Rating | 600VDC maximum |
Material & Design
| Housing Material | Polycarbonate (PC), impact-resistant, ANSI/ASTM compliant |
| Connector Design | Genderless SB350 series for proper polarity alignment |
| Housing Color | Gray |
Part Numbers
| Part Number | SB-906 |
| Cross References | SB906, 6325G1, APP 6325G1 |
Frequently Asked Questions
Q: What is the current rating for the SB-906 battery connector housing?
A: The SB-906 is rated for 350 amps continuous current. This high-current rating makes it suitable for heavy-duty battery and charger applications in electric lift trucks.
Q: What is the maximum voltage rating for the SB-906?
A: The SB-906 is rated for 600VDC maximum. This voltage specification covers standard lift truck battery systems and industrial DC power distribution applications.
Q: What material is the SB-906 connector housing made from?
A: The SB-906 housing is constructed from polycarbonate (PC) that meets relevant ANSI/ASTM criteria for electrical connectors. The polycarbonate provides impact resistance and durability in industrial environments.
Q: Is the SB-906 a genderless connector design?
A: Yes. The SB-906 is a genderless connector housing in the SB350 series. This design prevents incorrect mating and ensures proper polarity alignment for DC battery connections.
Q: What equivalent part numbers cross-reference to the SB-906?
A: The SB-906 is equivalent to part number 6325G1 and other SB906/6325 series housings. It also cross-references to APP 6325G1. Verify housing dimensions and contact configuration match your battery connector assembly.
