Product Description

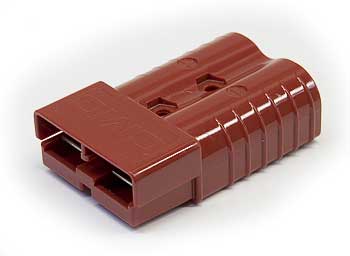

Anderson SB350 connector housing rated for 350 amperes continuous duty in 24VDC systems. Single-piece polycarbonate construction with UL94 V-0 flame rating. Genderless two-pole design accepts 1/0 AWG through 300 MCM wire with mechanically keyed red housing for voltage identification. Compatible with wire and busbar contacts. Dimensions 7.19 x 4.25 x 2.75 inches with 1.31 inch mated length. Silver plated contacts provide low resistance connection. Hot plug rated for 100 amperes under load. Maximu
Specifications
Electrical
| Current Rating | 350 amperes continuous |
| Maximum Current Capacity | 450 amperes with 4/0 AWG wire |
Part Numbers
| Model Series Designation | SB350 series connector housing |
Performance
| Busbar Contact Thread | 1/4 inch-20 UNC threaded studs for busbar mounting with lock nuts |
Frequently Asked Questions
Q: What is the current rating and voltage specification of the 913 connector housing?
A: The 913 is an Anderson SB350 series connector housing rated for 350 amperes continuous duty in 24VDC systems. Maximum current capacity reaches 450 amperes with 4/0 AWG wire. It features a genderless two-pole design.
Q: What wire sizes does the 913 Anderson SB350 connector accept?
A: The 913 accepts wire gauges from 1/0 AWG through 300 MCM and busbar contacts. For busbar connections, it uses 1/4 inch-20 UNC threaded studs with lock nuts for secure mechanical attachment and low-resistance connections.
Q: What are the physical dimensions of the 913 connector housing?
A: The 913 measures 7.19 x 4.25 x 2.75 inches in overall dimension with a mated length of 1.31 inches. The mechanically keyed red polycarbonate housing provides voltage identification and prevents incorrect mating.
Q: What safety and durability features does the 913 connector provide?
A: The 913 features single-piece polycarbonate construction with UL94 V-0 flame rating for electrical safety. Silver plated contacts provide low-resistance connections, and the connector is hot plug rated for 100 amperes under load, making it suitable for active charging and power distribution.
Q: What material and construction does the 913 connector housing use?
A: The 913 is constructed from single-piece polycarbonate with a mechanically keyed red housing for voltage identification. Contacts are silver plated to maintain low contact resistance in high-current 24VDC applications, and it accepts both wire and busbar contact types.
Q: Is the 913 connector compatible with wire and busbar simultaneously?
A: Yes, the 913 Anderson SB350 connector accepts both wire contacts for 1/0 AWG through 300 MCM cable connections and busbar contacts with 1/4 inch-20 UNC threaded studs. This dual compatibility allows flexible circuit configurations in battery and power distribution systems.
