Product Description
HOUSING (SB350 RED)
Frequently Asked Questions
Q: What is the AN-245 and what equipment does it fit?

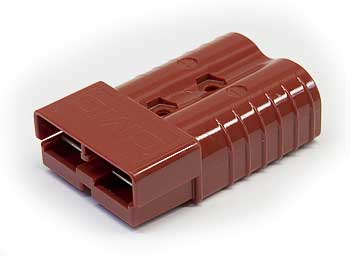

A: The AN-245 is a red housing for SB350 multipole power connectors used on electric lift trucks, pallet jacks, and forklifts from Crown, Toyota, Raymond, Yale, Hyster, and comparable brands. The red color denotes a specific keyed circuit or voltage rail. Confirm your equipment uses SB350 connectors before ordering.
Q: What does the red color of the AN-245 housing signify?
A: Red indicates a specific keyed connector position and polarity within the SB350 system. Color-coded housings prevent accidental cross-connection. Red housings only mate with red-keyed inserts, protecting circuits from reverse polarity and voltage mismatches.
Q: What wire gauge and voltage does the AN-245 SB350 housing accept?
A: The AN-245 accepts wire up to 1/0 AWG or larger and is rated for 600 volts AC/DC maximum. Contact amperage capacity depends on wire gauge and specific contact rating but is typically 300 to 400 amps continuous. Always verify the equipment specifications for exact wire and amperage requirements.
Q: Are SB350 housings like the AN-245 male or female connectors?
A: SB350 connectors are genderless—male and female contacts are intermixed within the same housing, making them interchangeable. This eliminates connector gender configuration issues and allows the mating assembly to determine actual polarity. Keying and color prevent reverse connection.
Q: Can I use the AN-245 in outdoor or cold storage environments?
A: Yes. The AN-245 polycarbonate housing has IP64 protection rating—dust-proof and splash-resistant. It withstands outdoor moisture, freezing temperatures in cold storage, and exposure to cleaning chemicals. Do not fully submerge the connector as internal seals will degrade over time.
Q: What maintenance does the AN-245 housing require?
A: Inspect regularly for cracks, UV discoloration, or internal contact corrosion visible at mating faces. Keep mating surfaces clean and dry. Do not force connectors during mating—smooth engagement indicates proper keying. Replace if contacts show green or white corrosion, seals shrink, or mating becomes difficult or intermittent. Expected lifespan is 5 to 10 years with normal use.
