Product Description

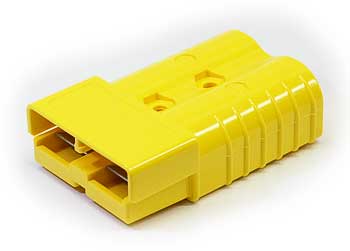

Housing (SB350 Yellow), part number 317-1062-P by Liftsplus.com, is a high-impact thermoplastic connector housing designed for SB350 series electric lift truck connections. Rated for up to 350A and 600VDC with endurance for 10,000 cycles, this housing offers robust corrosion and flame resistance and is compatible with AWG 1/0–350 MCM wires and SB350 contacts. Nominal dimensions: 5.25 x 2.13 x 1.57 inches.
Specifications
Part Numbers
| Manufacturer Part Number | 317-1062-P |
Electrical Specifications
| Current Rating | 350A |
| Voltage Rating | 600VDC |
| Mechanical Endurance | 10,000 cycles |
Material & Compatibility
| Housing Material | High-impact Thermoplastic |
| Corrosion Resistance | Robust |
| Flame Resistance | Robust |
| Wire Gauge Compatibility | AWG 1/0–350 MCM |
| Contact Compatibility | SB350 series |
| Nominal Dimensions (W x H x D) | 5.25 x 2.13 x 1.57 inches |
Frequently Asked Questions
Q: What is the current and voltage rating for the 317-1062-P housing?
A: The 317-1062-P is rated for 350A at 600VDC. This housing is designed for SB350 series electric lift truck connections and is rated for continuous operation within these parameters.
Q: What wire gauges does the 317-1062-P housing accept?
A: The 317-1062-P housing is compatible with AWG 1/0 through 350 MCM wire gauges. Verify your wire gauge matches this range before ordering to ensure proper fitment with SB350 contacts.
Q: What are the physical dimensions of the 317-1062-P housing?
A: Nominal dimensions are 5.25 x 2.13 x 1.57 inches. Measure your connector cavity or mounting space to confirm these dimensions fit your application before purchase.
Q: What material is the 317-1062-P housing made from and what is its durability?
A: The 317-1062-P is constructed from high-impact thermoplastic with corrosion and flame resistance. It is rated for 10,000 mechanical connection cycles, making it suitable for industrial material handling equipment with frequent disconnect and reconnect operations.
Q: Which electric lift truck equipment types can use the 317-1062-P housing?
A: The 317-1062-P is designed for SB350 series electric lift truck connections. It fits equipment using SB350 connector systems, including electric pallet jacks, reach trucks, and battery chargers from manufacturers like Crown, Toyota, Raymond, Yale, and Hyster that use this connector standard.
