Product Description

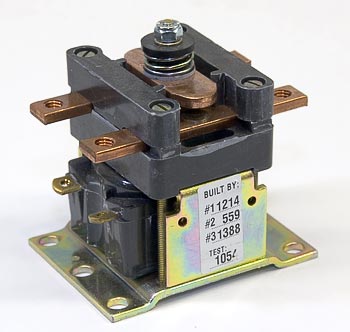

Hyster HY 1330689 is an OEM DC contactor designed for use in electric lift trucks and material handling vehicles, featuring 24VDC coil voltage, single pole normally open contacts, 80 ampere rating, and cross-referenced to GE model IC4482CTTA100AH124XN for direct replacement and compatibility with Hyster equipment.
Specifications
Electrical
| Coil Voltage | 24VDC nominal |
| Main Circuit Voltage Rating | 24VDC |
| Current Rating | 80A continuous |
Part Numbers
| OEM Part Number | HY 1330689 |
| Manufacturer Reference | GE IC4482CTTA100AH124XN |
| Cross-Reference Part Numbers | Equivalent to GE EV DC Contactor IC4482CTTA100AH124XN |
Frequently Asked Questions
Q: What is the coil voltage and current rating for the HY 1330689 contactor?
A: The HY 1330689 is a 24VDC nominal coil voltage contactor with an 80 ampere continuous current rating. The main circuit voltage rating is also 24VDC, making it suitable for 24-volt electric lift truck systems. Verify your equipment voltage before ordering to ensure compatibility.
Q: Is the HY 1330689 a direct replacement for GE model IC4482CTTA100AH124XN?
A: Yes, the HY 1330689 is cross-referenced to GE model IC4482CTTA100AH124XN and serves as a direct replacement. Both parts share identical electrical specifications: 24VDC coil, single pole normally open contact configuration, and 80A rating. Confirm part compatibility with your specific Hyster model before installation.
Q: What type of contacts does this contactor have?
A: The HY 1330689 features single pole normally open contacts. This contact type means the contacts are open when the coil is de-energized and close when 24VDC is applied to the coil, typical for power distribution and control circuit applications in electric lift trucks.
Q: Can the HY 1330689 be used in Hyster electric lift trucks from different product lines?
A: The HY 1330689 is an OEM component designed for Hyster electric lift truck applications. Compatibility varies by model and series. Verify the part number matches your equipment documentation to confirm it fits your specific Hyster lift truck model and voltage system.
Q: What is the difference between HY 1330689 and other Hyster contactors?
A: The HY 1330689 is specifically rated for 24VDC systems with 80A continuous capacity and single pole normally open contact configuration. Other Hyster contactors may have different voltage ratings (such as 36V or 48V), different amperage ratings, or different contact configurations. Always match the voltage and amperage to your equipment requirements.
