Product Description

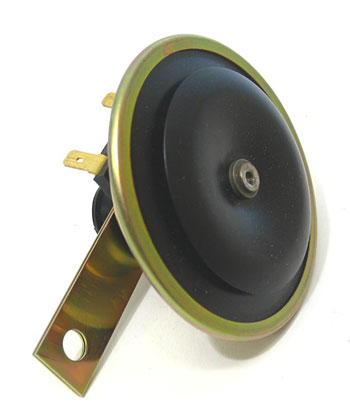

Hyster HY 1451327 is an OEM 24VDC horn for electric lift trucks, with a 110dB output at 1 meter, disc type construction, steel vibration-resistant diaphragm, sealed protective housing, and standard mount. No cross-reference part numbers confirmed.
Specifications
Electrical
| Rated Voltage | 24VDC |
| Sound Pressure Level | 110 dB at 1 meter |
| Current Draw | 2.0A maximum at 24VDC |
Part Numbers
| OEM Part Number | HY 1451327 |
Performance Specifications
| Sound Output Frequency | 420 ±30 Hz |
Frequently Asked Questions
Q: What are the electrical specifications for the HY 1451327 horn?
A: The HY 1451327 is rated for 24VDC operation with a maximum current draw of 2.0A at 24VDC. Sound pressure output is 110 dB at 1 meter with a sound frequency of 420 ±30 Hz. Ensure your lift truck control system provides stable 24V power to operate the horn properly.
Q: What is the construction type of the HY 1451327?
A: The HY 1451327 is a disc-type horn with a steel vibration-resistant diaphragm and sealed protective housing. This construction provides durability in industrial environments and protects internal components from moisture, dust, and vibration inherent to electric lift truck operation.
Q: How loud is the HY 1451327 and is it suitable for warehouse use?
A: The HY 1451327 produces 110 dB at 1 meter, which meets OSHA audibility requirements for material handling equipment warnings in warehouse and dock environments. This sound pressure level is effective for alerting personnel without being unnecessarily excessive.
Q: What mounting configuration does the HY 1451327 use?
A: The HY 1451327 features standard mount construction, meaning it uses conventional threaded studs or flanges for panel or bracket attachment. Verify mounting hole patterns match your lift truck frame or control panel before ordering.
Q: Are there cross-reference or superseding part numbers for the HY 1451327?
A: No known cross-reference part numbers have been confirmed for the HY 1451327. Use the OEM part number HY 1451327 when ordering to ensure you receive the correct 24VDC horn assembly with the specified 110 dB output and frequency characteristics.
Q: What lift truck models use the HY 1451327 horn?
A: The HY 1451327 is designed for Hyster electric lift trucks with 24VDC control systems. Confirm your equipment voltage and horn mounting location before ordering. This OEM horn ensures compatibility with Hyster pallet jacks and electric forklift models requiring 24V audible warning devices.
