Hyster Wire Harness for Electric Lift Trucks
HY 2047806
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

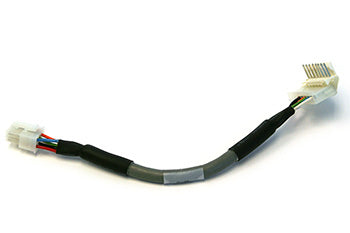

Hyster OEM wire harness HY 2047806 is an electrical assembly for Hyster electric lift trucks, designed for 24VDC control and power distribution. It features durable copper conductors, high-flex PVC insulation, abrasion-resistant sheathing, and multi-pin connectors, engineered for direct integration with factory equipment.
Specifications
Part Numbers & Compatibility
| Make | Hyster, Yale |
| Model | W20ZR, W30ZA, W40ZA, W40Z, W50Z |
| Application Voltage | 24VDC nominal system voltage |
| Part Number | HY 2047806 |
| Manufacturer Part Number | 2047806 |
Electrical Specifications
| Connector Type | Multi-pin connectors |
Additional Specifications
| Function | Conducts control and power signals for electric lift truck systems |
| Description | Hyster OEM wire harness HY 2047806 is an electrical assembly for Hyster electric lift trucks, designed for 24VDC control and power distribution. |
| Conductor Material | Durable copper conductors |
| Insulation Material | High-flex PVC insulation |
| Sheathing Material | Abrasion-resistant sheathing |
| Integration | Engineered for direct integration with factory equipment |
Frequently Asked Questions
Q: What models is the HY 2047806 compatible with?
A: The HY 2047806 is designed to fit Hyster electric lift trucks including models W20ZR, W30ZA, W40ZA, W40Z, and W50Z.
Q: What materials make the HY 2047806 durable?
A: The harness uses high-flex PVC insulation and abrasion-resistant sheathing to withstand warehouse conditions. Copper conductors ensure reliable conductivity while the protective sheathing prevents damage from contact with equipment edges and sharp surfaces.
Q: How do I know if the HY 2047806 is the right replacement part for my lift truck?
A: Verify your equipment operates on 24VDC and matches one of the compatible models listed. The HY 2047806 is engineered for direct integration with the electrical systems of these Hyster models.
Q: What should I do if the HY 2047806 shows signs of wear?
A: Inspect the harness periodically for cuts, cracks, or exposed conductors in the insulation and sheathing. Clean debris and moisture from connectors during routine maintenance. Replace immediately if damage is visible to prevent electrical faults.
