Battery Charger for Hyster and Yale Electric Lift Truck
HY 2073416
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

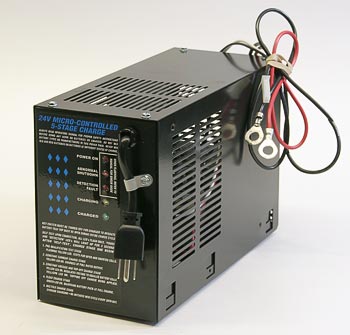

HY 2073416 is a Hyster on-board battery charger for electric lift trucks, providing 24VDC output at 18A continuous with microprocessor control and integrated mounting, compatible with select Hyster pallet jack models.
Specifications
Part Numbers & Compatibility
| Make | Hyster, Yale |
| Model | W40Z, W45Z, MPB40-E |
| Application | Electric lift trucks with 24V battery systems |
| Part Number | 2073416 |
| Manufacturer Part Number | HY2073416 |
| Cross-Reference Part Numbers | HY2073416, 2073416 |
| Compatibility | Compatible with Hyster pallet jack models W40Z, W45Z |
| Cross Reference Part Numbers | HY2073416, 2073416 |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 18 A |
| Charge Profile | microprocessor control |
| Connector Type | O-Ring |
| Battery Chemistry | lead-acid |
Additional Specifications
| Control Feature | Micro Control, B218 |
| Description | HY 2073416 is a Hyster on-board battery charger for electric lift trucks, providing 24VDC output at 18A continuous with microprocessor control and integrated mounting, compatible with select Hyster pallet jack models. |
Frequently Asked Questions
Q: What does the HY 2073416 battery charger do?
A: The HY 2073416 is an on-board battery charger for electric lift trucks. It provides 24VDC output at 18A continuous, allowing operators to charge the truck's battery directly from standard 120VAC single-phase power.
Q: What are the electrical specifications of the HY 2073416?
A: Input voltage is 120VAC single-phase. Output voltage is 24VDC nominal. Output current is 18A continuous. The charger features microprocessor control for optimized charging performance and battery protection.
Q: Which models is the HY 2073416 compatible with?
A: The HY 2073416 is compatible with Hyster and Yale electric lift truck models W40Z, W45Z, and MPB40-E. Verify your specific model number and serial range before ordering to ensure proper fitment and electrical compatibility.
Q: How does the microprocessor control in the HY 2073416 work?
A: The integrated microprocessor monitors charging parameters and adjusts current delivery to prevent overcharging and battery damage. This extends battery life and ensures safe, efficient charging of the truck's 24VDC battery system.
Q: What are the cross-reference part numbers for the HY 2073416?
A: Cross-reference part numbers include HY2073416, 2073416, and HY 2073416. Use any of these numbers when ordering or cross-referencing this charger.
Q: Is the HY 2073416 a built-in charger or external unit?
A: The HY 2073416 is an on-board charger with integrated mounting, meaning it is permanently installed on the truck. It charges the battery whenever the truck is plugged into a 120VAC power source.
