Product Description

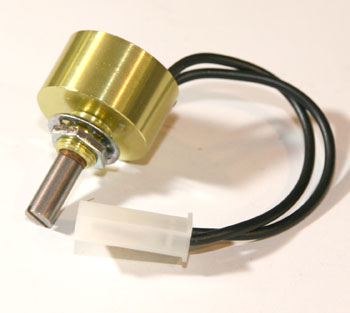

Hyster HY 2302033 Potentiometer is a rotary sensor and gear assembly engineered for precise handle position feedback in electric walkie pallet trucks, specifically compatible with Hyster W40XL and W40XT models.
Specifications
Dimensional Specifications
| Installation Location Reference | Steer arm and handle assembly, Hyster W40XL/XT |
Part Numbers
| OEM Part Number | HY 2302033 |
| Manufacturer Part Number | 2302033 |
| Cross-Reference Part Numbers | HY2302033, Hyster 2302033 |
| Compatible Models | Hyster W40XL, Hyster W40XT |
Frequently Asked Questions
Q: What is the HY 2302033 potentiometer and how does it function?
A: The HY 2302033 is a rotary position sensor that provides handle position feedback to the motor controller in Hyster walkie pallet trucks. It is a gear assembly mounted to the steer arm that monitors steering input and controls directional response.
Q: Which Hyster models is the HY 2302033 potentiometer compatible with?
A: The HY 2302033 is designed for Hyster W40XL and W40XT electric walkie pallet trucks. It mounts to the steer arm and handle assembly. Do not substitute with other part numbers as electrical characteristics vary by model.
Q: What are the specifications of the HY 2302033 potentiometer?
A: The HY 2302033 is a rotary sensor with integrated gear assembly. It provides analog position feedback with specific resistance ranges and voltage output. Verify electrical ratings against your controller documentation.
Q: What symptoms indicate the HY 2302033 potentiometer is failing?
A: Signs of potentiometer failure include erratic steering response, loss of steering control, intermittent movement, or the truck moving when the handle is in neutral. Electrical noise or grinding from the steer arm also indicates failure.
Q: Are there cross-reference part numbers for the HY 2302033?
A: The HY 2302033 is also referenced as manufacturer part number 2302033 and cross-reference HY2302033. Always verify the exact part number matches your equipment documentation to ensure correct electrical and mechanical fitment.
