Hyster OEM Pin for Electric Lift Trucks
HY 2305316
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

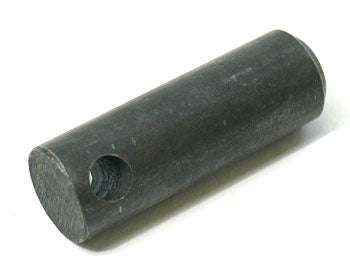

Hyster HY 2305316 is an OEM pin designed for electric lift truck mast attachment systems. Engineered for use in Hyster forklift applications, this part features a 34 mm nominal diameter for ISS carriage up to 2500 kg, carbon steel construction, and compatibility with select Hyster models. Mechanical tolerances and service factors tailored to heavy-duty mast and coupling installations ensure reliable operation.
Specifications
Dimensional Specifications
| Compatibility Reference | Compatible with Hyster J2.5-3.0XNL and comparable models utilizing ISS carriage pin attachment |
Material & Construction
| Material Specification | Carbon steel conforming to Hyster OEM requirements |
Part Numbers
| OEM Part Number | HY 2305316 |
Performance Specifications
| Service Factor | Designed for 1.15 static load service factor in lift truck mast applications |
Frequently Asked Questions
Q: What is the HY 2305316 pin designed for?
A: The HY 2305316 is an OEM pin designed for electric lift truck mast attachment systems. It features a 34 mm nominal diameter and is engineered for ISS carriage systems rated up to 2500 kg, commonly used in Hyster forklift mast and coupling installations.
Q: What material is the HY 2305316 pin constructed from?
A: The HY 2305316 is constructed from carbon steel conforming to Hyster OEM requirements. This material provides the strength and durability necessary for heavy-duty mast attachment applications in electric lift trucks.
Q: Which Hyster models are compatible with the HY 2305316?
A: The HY 2305316 is compatible with Hyster J2.5-3.0XNL and comparable models utilizing ISS carriage systems. Verify that your equipment uses a 34 mm diameter pin attachment point before ordering.
Q: What is the service factor for the HY 2305316 pin?
A: The HY 2305316 is designed for a 1.15 static load service factor in lift truck mast applications. This service factor accounts for mechanical tolerances and heavy-duty coupling installations on electric lift trucks.
